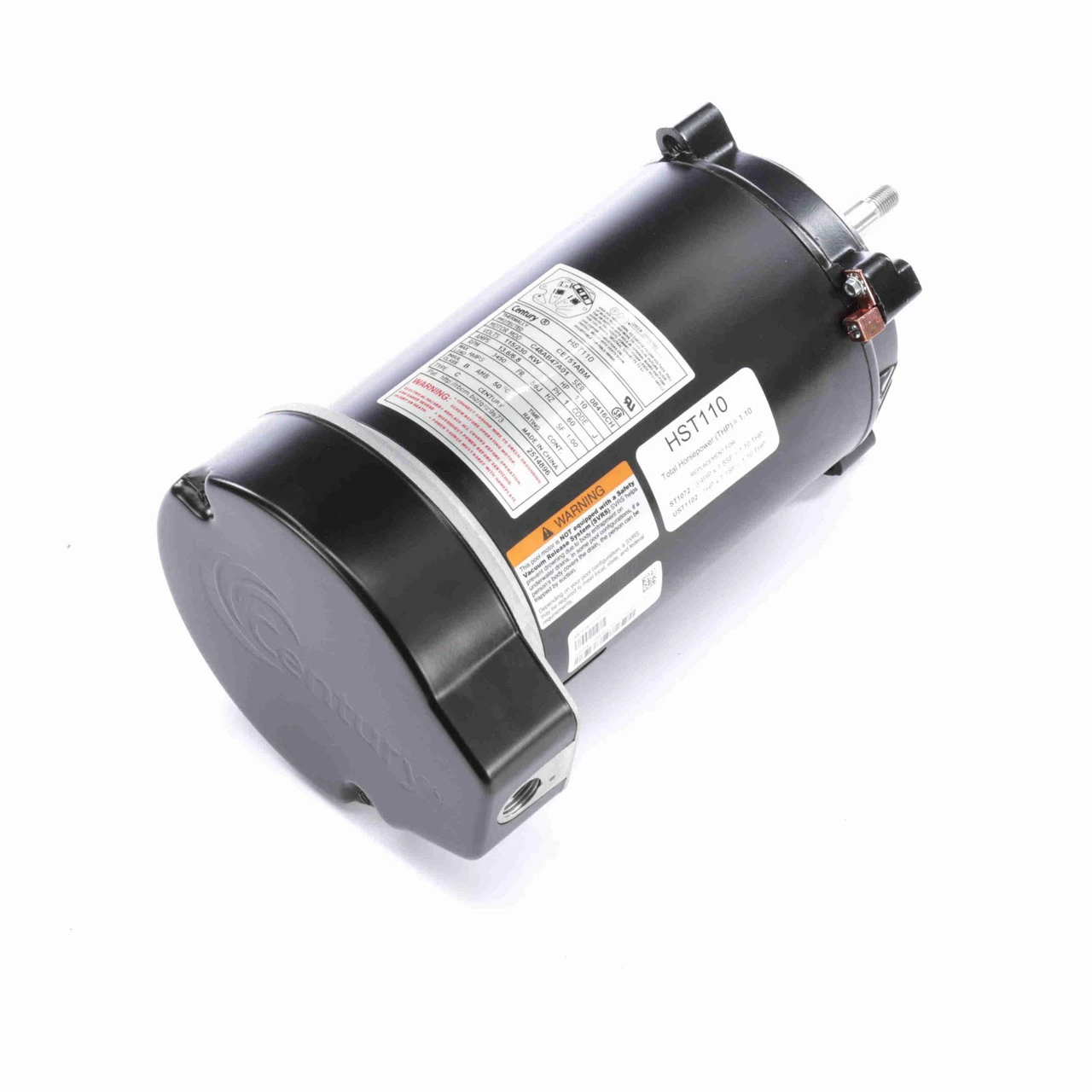

1.10 HP Round Threaded Shaft Horizontal Pool Pump Motor

If you don’t want to spend much time maintaining the pools, this motor is a must-have accessory. The performance shortens run times and reduces energy consumption leading to lower operating costs. With this motor, you don’t have to compromise with performance and quality.

Product Features:

Stainless steel shaft for corrosion protection

New triple seal protection on pump end bearing

Voltage change device

Premium sealed 203 bearings both ends

Definitive shaft access (7/16″ wrench)

Open accessible terminal board and wiring compartment for easy installation

Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:

Output HP: 1.10 HP

Frequency: 60 Hz

Current: 6.8/13.6 A

Service factor: 1

Output KW: 0.82 kW

Voltage: 230/115 V

Speed: 3450 rpm

Poles: 2

Phase: 1

Insulation class: F

Mounting: round

Drive end bearing: ball

Enclosure: open drip proof

Ambient temperature: 50°C

Frame: 56J

Thermal protection: automatic

Motor orientation: horizontal

Electrical type: capacitor start induction run

Rotation: counter clockwise pump end

Dimensions:

Shaft diameter: 0.625″

Shaft extension: 2.562″

Frame length: 7.25″

Material(s): stainless steel

Frame material: rolled steel
