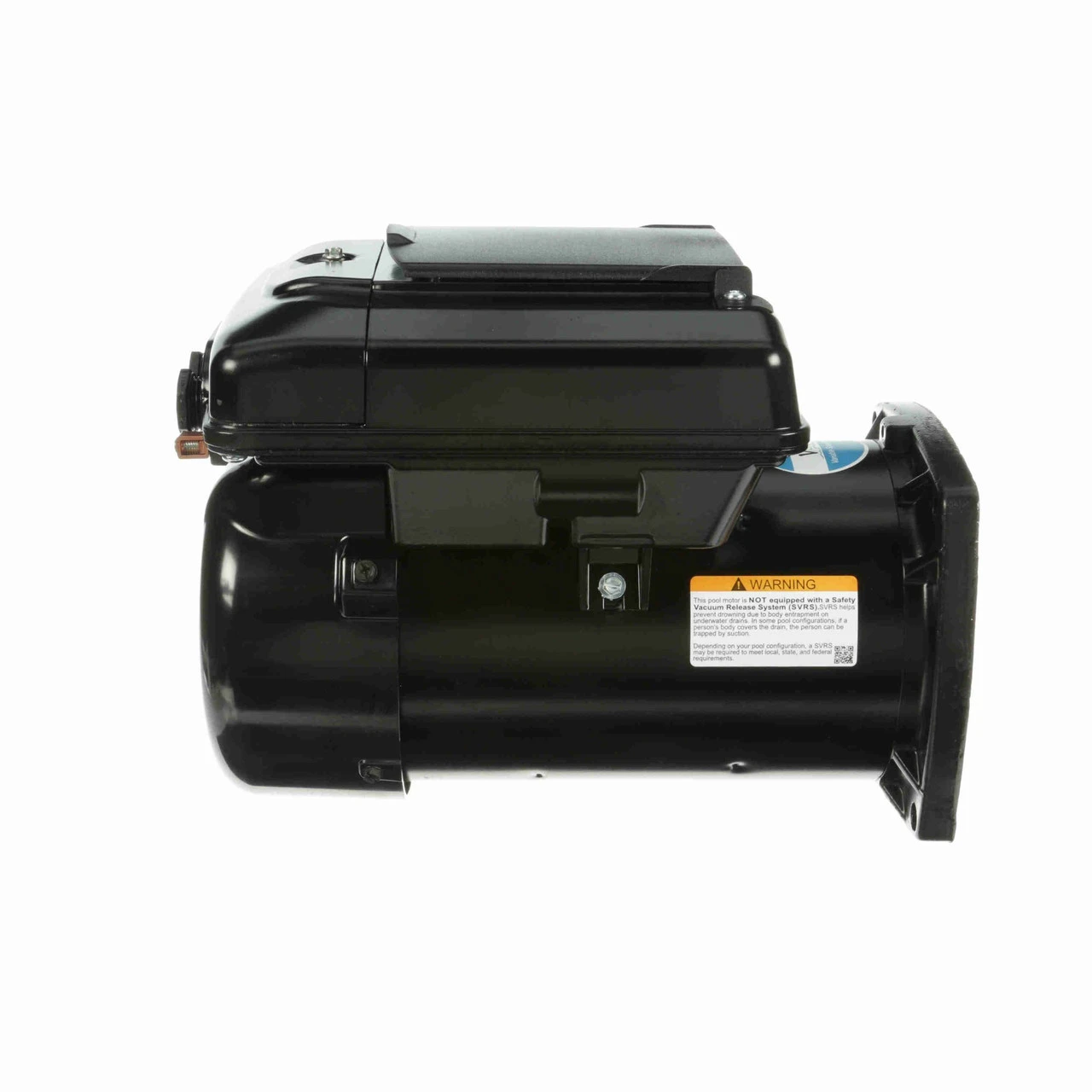

1/2 – 1.65 THP Square Flange Threaded Shaft Pool Spa Motor With 1 SF

Original price was: $322.00.Current price is: $99.99.

Quality at its Finest

Discover a world of quality products.

Secure Shopping Starts with Safe Payments

Service that stands out, online and always timely.

Love clean pools? Then seize this affordable replacement pump motor that delivers the performance you demand with the flexibility they desire. It helps you in maintaining the proper pool environment.

Product Features:

Variable speed motor

Durable TEFC (Totally Enclosed Fan Cooled) construction

ECM technology (Electronically Commutated Motor)

40-80% energy savings

Integrated user interface

Freeze protection

Digital inputs for third party automation

Easy to install

Quiet and cool operation

UL recognized with electronic thermal protection

Clockwise lead end rotation

Additional Features:

Output HP: 1.65 HP

Frequency: 60 Hz

Current: 10.5-10.0 A

Service factor: 1

Duty: continuous

Electrical type: permanent magnet motor

Frame: 48Y

Output KW: 1.2 kW

Voltage: 208-230 V

Speed: 600-3450 rpm

Phase: 1

Insulation class: F

Enclosure: totally enclosed fan cooled

Ambient temperature: 50 °C

CSA: N

Poles: 2

Mounting: square flange

Drive end bearing: ball

Opp drive end bearing: ball

Overall length: 12.58″

Shaft diameter: 0.625″

Shaft extension: 0.906″

Frame length: 7.81″

Motor orientation: horizontal
