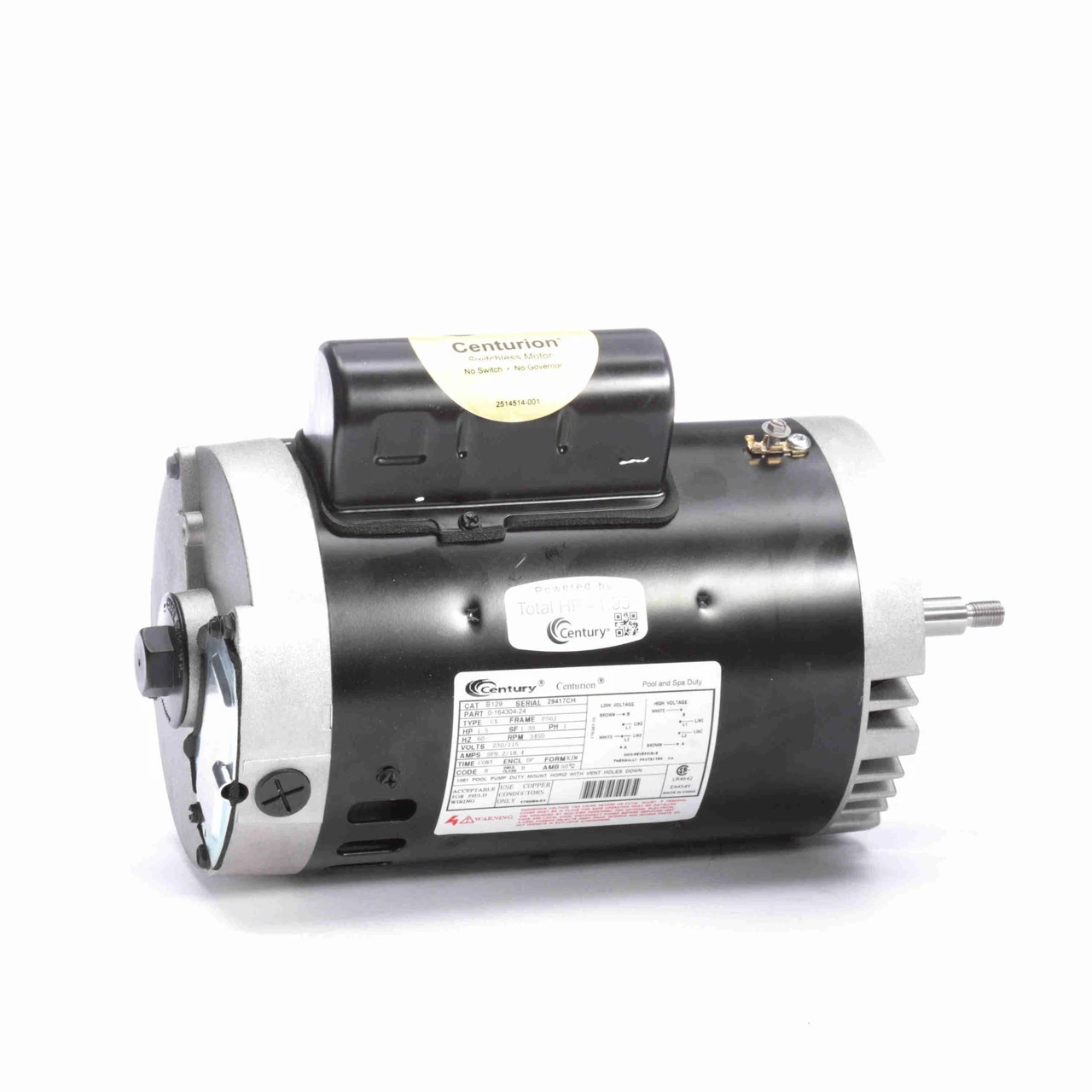

1.5 HP C Face Threaded Shaft Horizontal Pool Pump Motor, 1.30 SF

A threaded shaft is always better than a regular shaft! Enjoy your time in the swimming pool by having this enduring motor. Arriving with the specification of 1.5 HP, this motor is an asset!

Product Features:

Switchless rigid base pool pump motor

Comes with 304 bearing shaft end and 303 stainless steel shaft

Includes permanent split capacitor

Contains open drip-proof technology

Additional Features:

Output HP: 1.5 Hp

Current: SF 9.2/18.4 A

Frequency: 60 Hz

Service Factor: 1.3

Duty: continuous

Frame size: P56J

Protector: thermally protected

UL: recognized

Output KW: 1.1 kW

Voltage: 230/115 V

Speed: 3450 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: B

Enclosure: drip proof

CSA: Y

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: C face

Drive end bearing: BALL

Dimensions:

Frame length: 8″

Shaft extension: 2.57″

Overall length: 13.5″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
