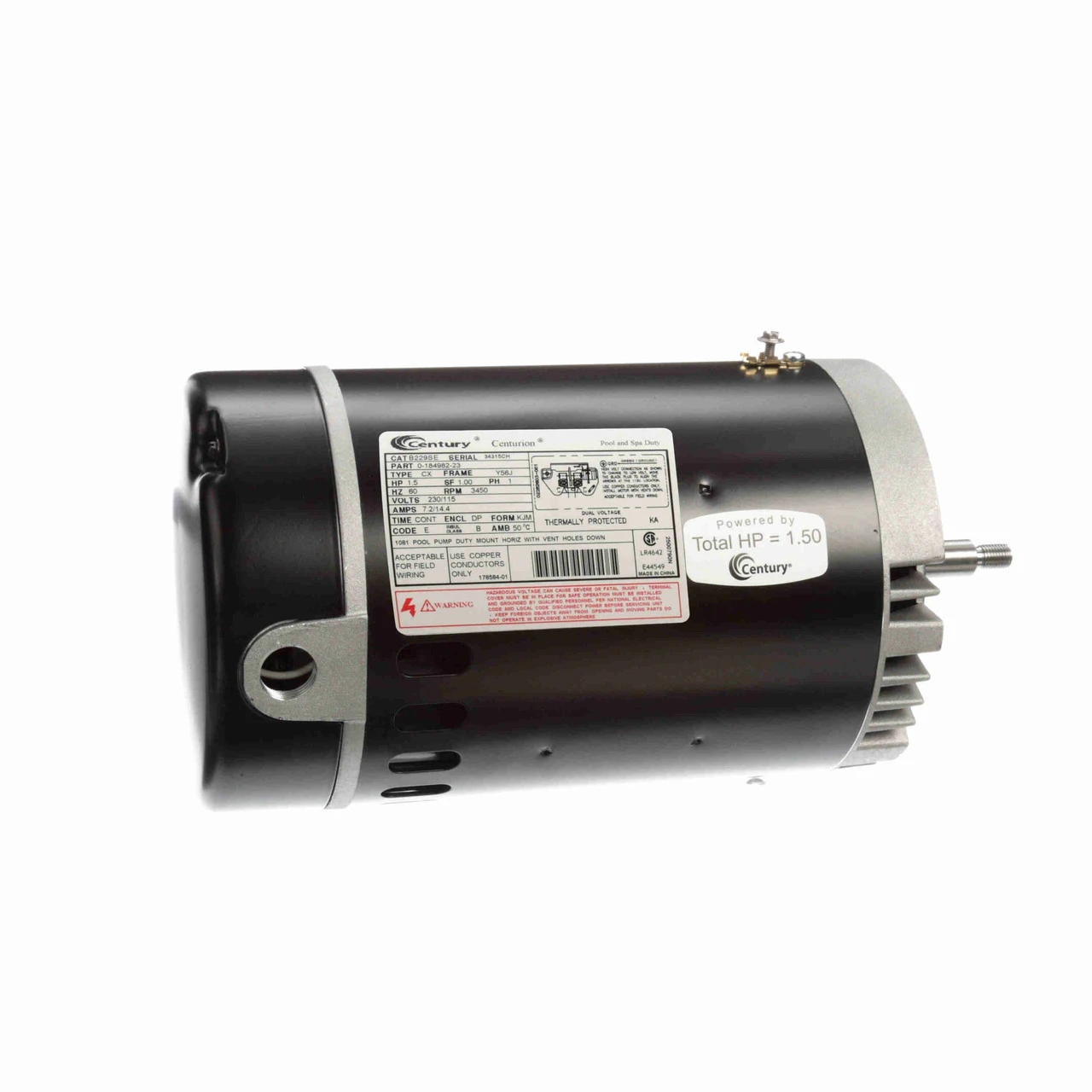

1.5 HP C Face Threaded Shaft Horizontal Pool Pump Motor, 1 SF

Generating an output power of .75 HP, this 56J motor is a timeless addition to your mechanical devices! Turning the electrical energy to mechanical power is now quick and easy with this motor. It’s made with endurance and sturdiness to meet all your requirements!

Product Features:

Switchless rigid base pool pump motor

Comes with 304 bearing shaft end and 303 stainless steel shaft

Includes permanent split capacitor

Contains open drip-proof technology

Additional Features:

Output HP: 1.5 Hp

Current: 7.2/14.4 A

Frequency: 60 Hz

Service Factor: 1

Duty: continuous

Frame size: Y56J

Protector: thermally protected

UL: recognized

Output KW: 1.1 kW

Voltage: 230/115 V

Speed: 3450 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: B

Enclosure: drip proof

CSA: Y

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: C face

Drive end bearing: BALL

Dimensions:

Frame length: 7.38″

Shaft extension: 2.57″

Overall length: 13.91″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
