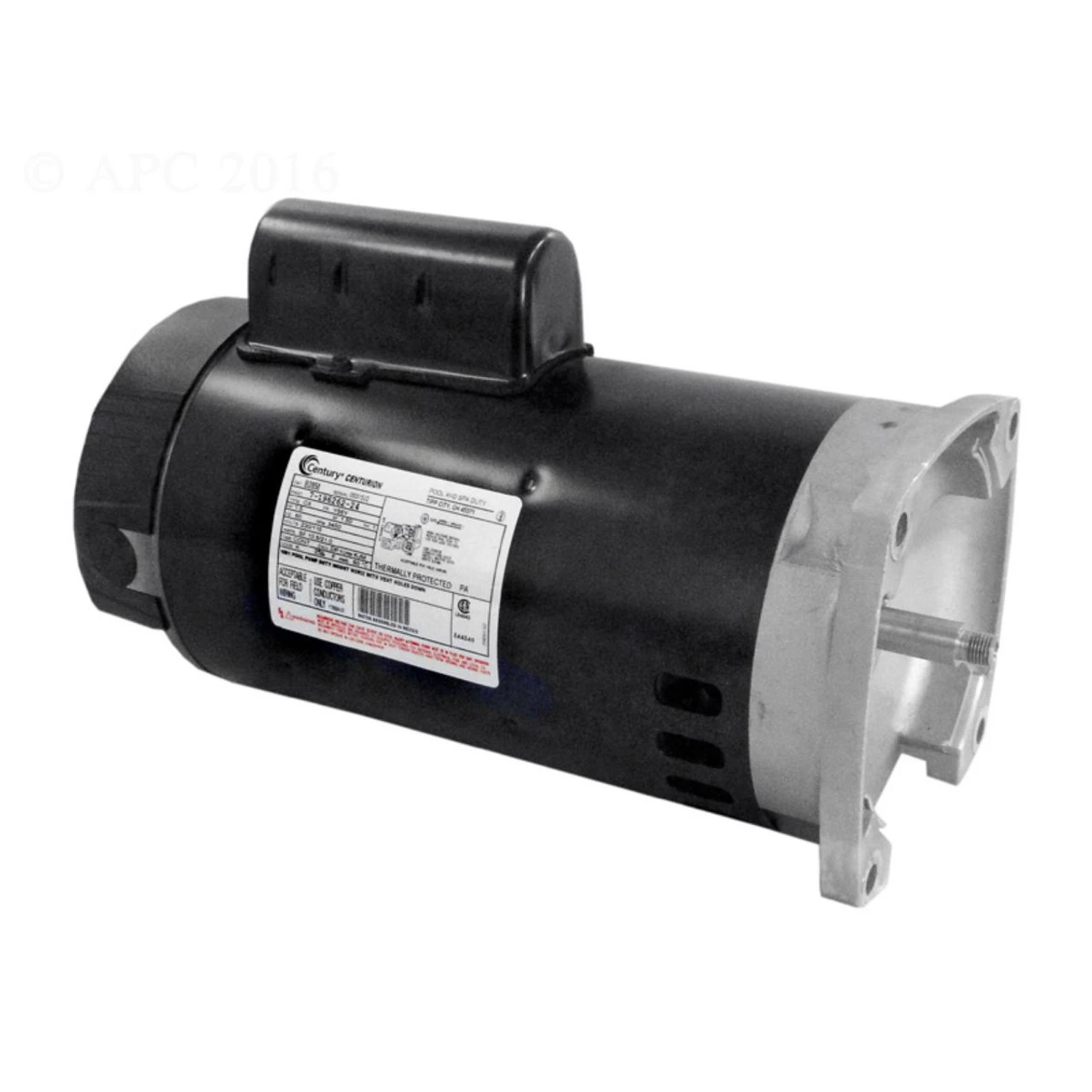

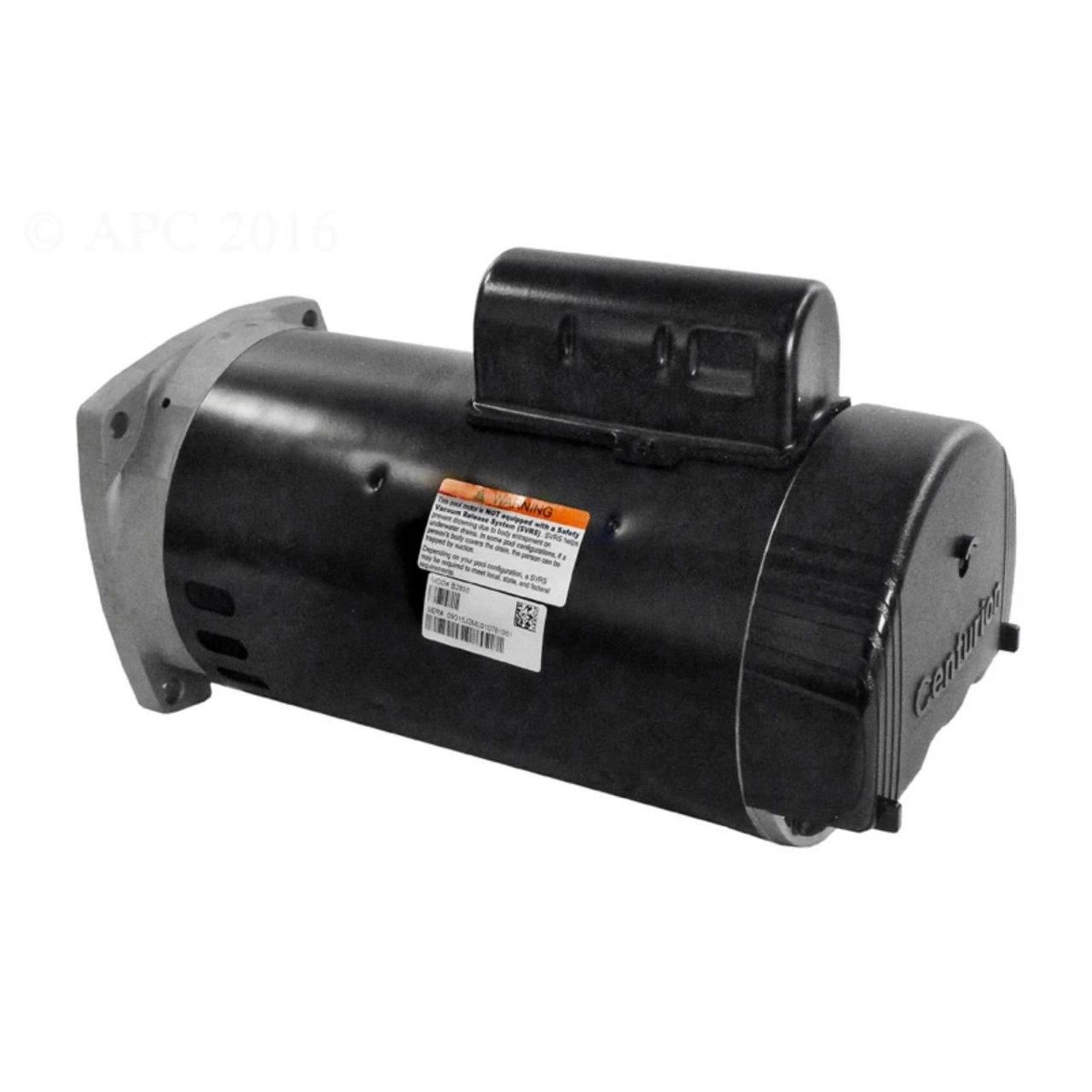

1.5 HP Square Flange Full Rated Pool Pump Motor, 1.50 SF

What else you need more than a 1.5 HP flanged motor? Perfect for daily use under rough conditions, and it’s cheap and requires low maintenance. Efficient and sturdy!

Product Features:

Square flange full rated switchless pool pump motor

Stainless steel shaft for corrosion protection

Sealed ball bearings

Open drip-proof design allows air to circulate through the windings

Permanent split capacitor for enhanced running efficiency

Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:

Output HP: 1.5

Frequency: 60 Hz

Current: SF 10.5/21.0 A

Service factor: 1.50

Frame: Y56Y

Output KW: 1.1 kW

Voltage: 230/115 V

Speed: 3450 rpm

Phase: 1

Insulation class: F

Enclosure: drip proof

Ambient temperature: 50°C

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: ball

Shaft type: threaded

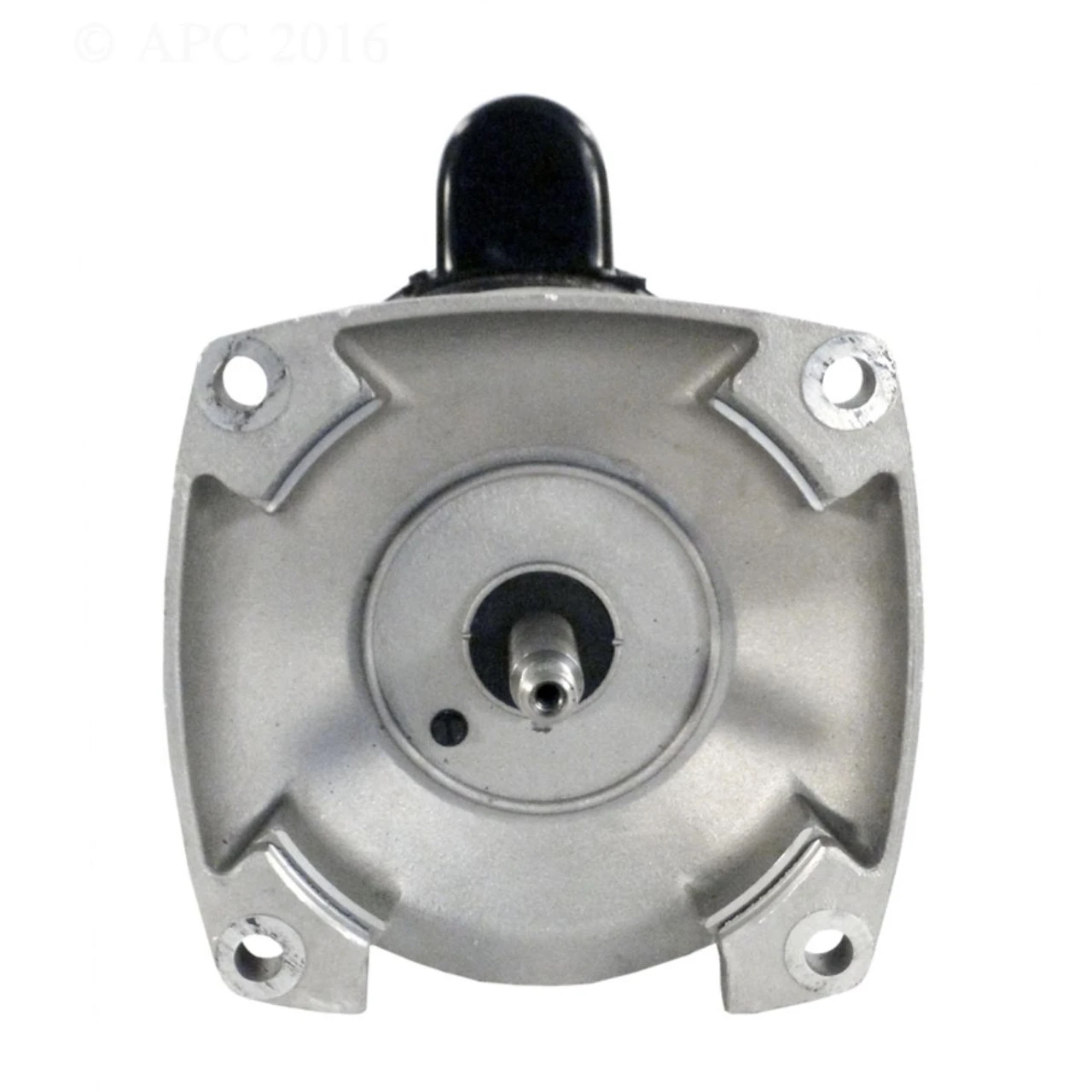

Mounting: square flange

Drive end bearing: ball

Dimensions:

Shaft diameter: 0.62″

Frame length: 10″

Shaft extension: 0.91″

Material(s): rolled steel/stainless steel
