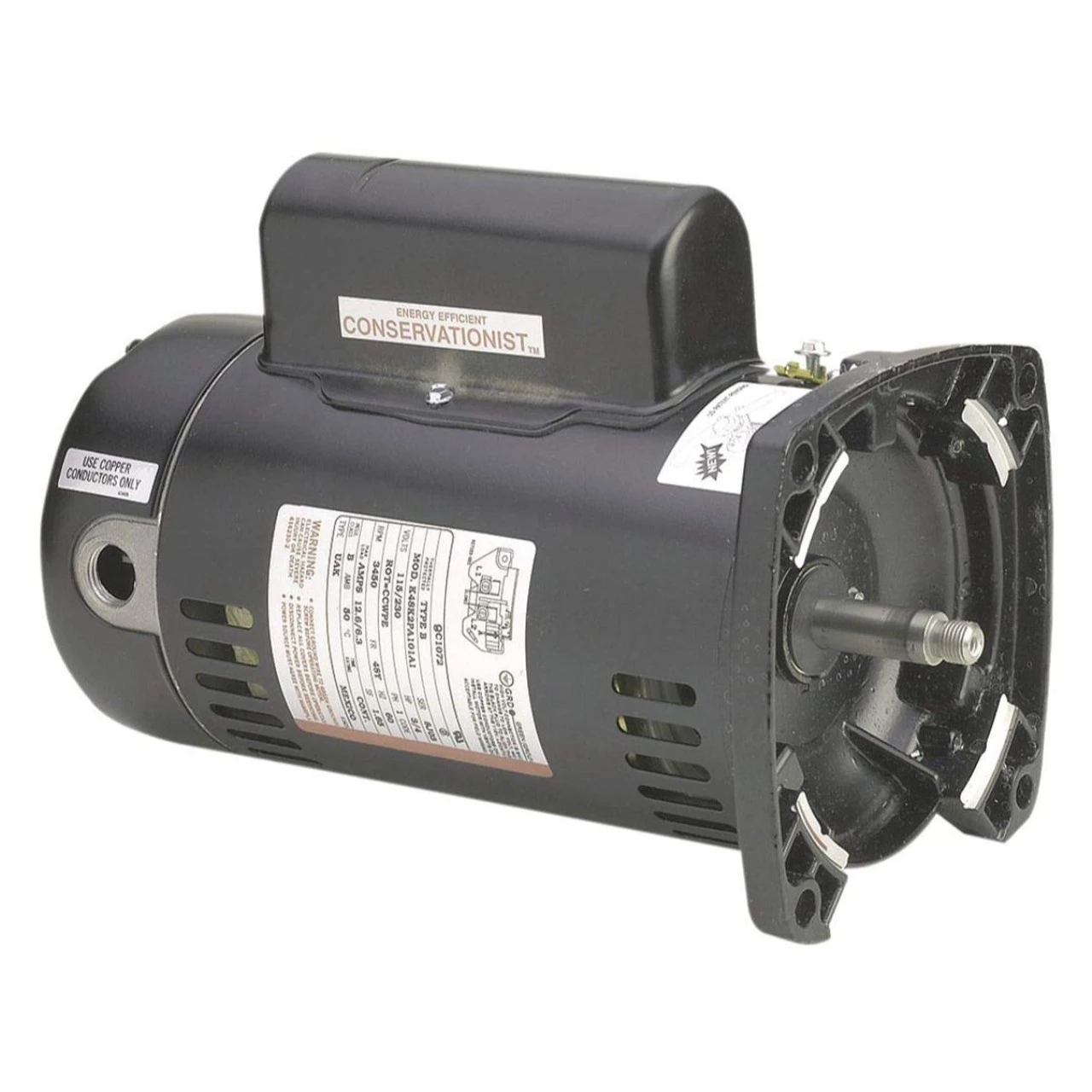

1.5 HP Square Flange Threaded Shaft Horizontal Pool Pump Motor, 1.1 SF

Displaying a square flange, this pool motor is an ideal replacement motor for your pools. Efficiently handling the removal of excessive moisture, it also allows proper airflow. This remarkable addition ensures high-quality maintenance.

Product Features:

Pool motors have a square mounting face for the pump attachment

Motor has a threaded shaft

Comes with 303 stainless steel shaft

UL 1081 design

Energy efficient

Contains open drip-proof technology

Additional Features:

Output HP: 1.5 Hp

Current: SF 8.0/16.0 A

Frequency: 60 Hz

Service Factor: 1.1

Duty: continuous

Frame: 48Y

Protector: automatic

UL: recognized

Output KW: 1.1 kW

Voltage: 230/115 V

Speed: 3450 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: B

Enclosure: open drip proof

CSA: Y

Electrical type: capacitor start capacitor run

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: square flange

Drive end bearing: BALL

Dimensions:

Frame length: 10.06″

Shaft extension: 0.90″

Overall length: 13.94″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
