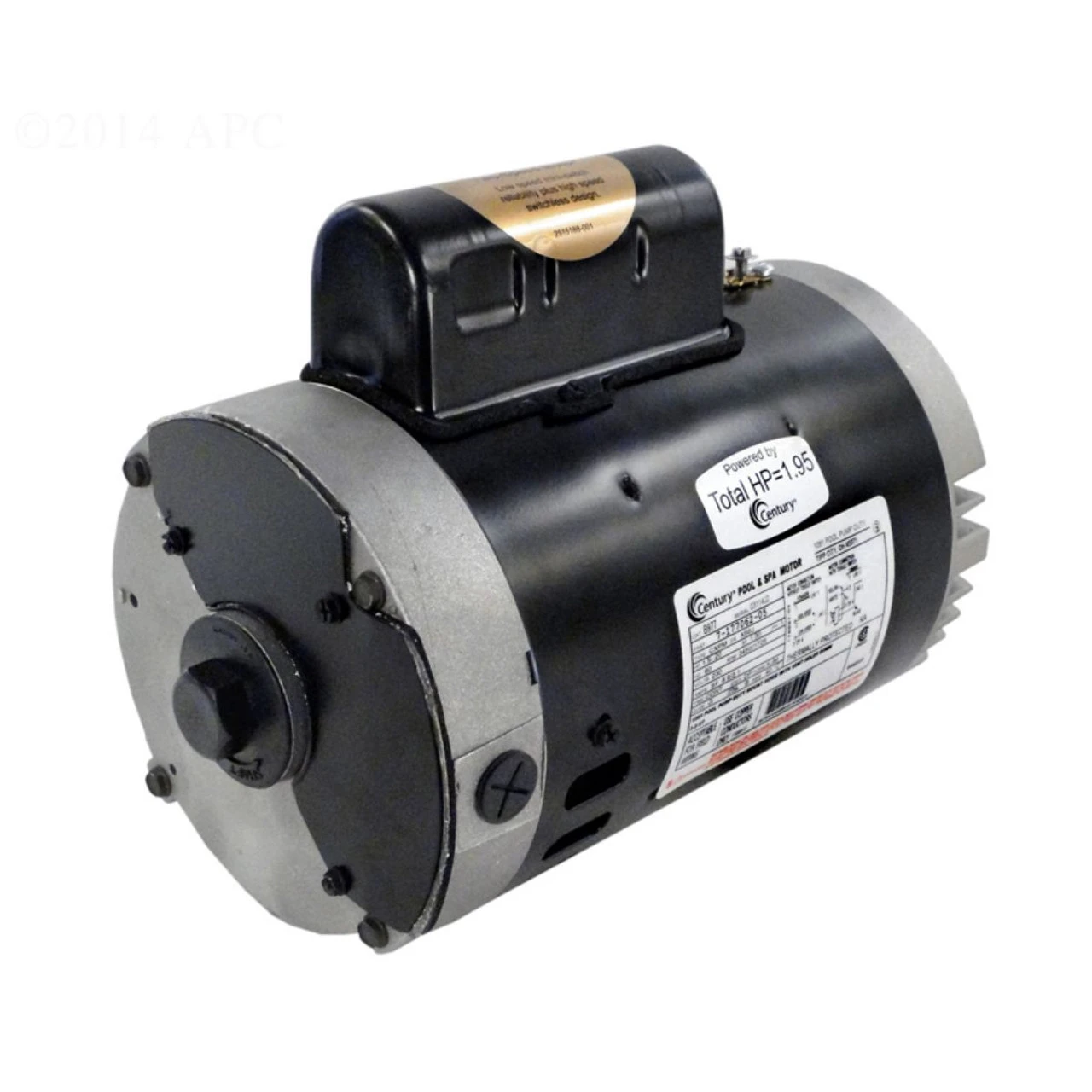

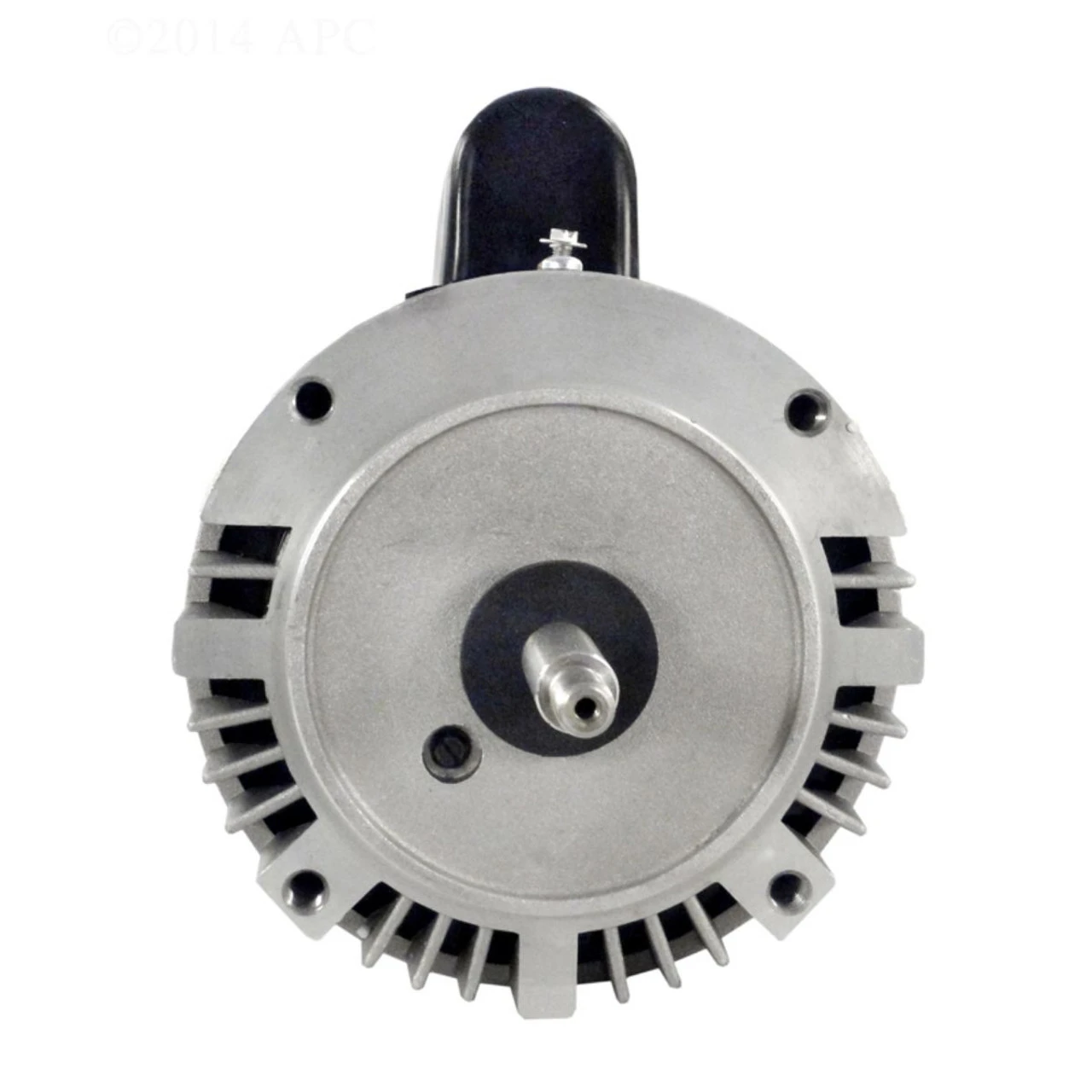

1.5 To 0.20 HP C-Face Full Rated Pool Pump Motor, 1.30 SF

The C-face threaded shaft and 2-speed design make this motor as unique as you! Perfect for daily use under rough conditions, and it’s cheap and requires low maintenance. Efficient and sturdy!

Product Features:

Energy-efficient dual speed pool pump motor

Stainless steel shaft for corrosion protection

High speed switchless; low speed microswitch

Sealed ball bearings reduce wear and tear

Permanent split capacitor for enhanced running efficiency

Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:

Output HP: 1.5/0.20

Frequency: 60 Hz

Current: SF 8.7/1.9 A

Service factor: 1.30

Frame: Y56J

Output KW: 1.1 kW

Voltage: 230 V

Speed: 3450/1725 rpm

Phase: 1

Insulation class: F

Enclosure: drip proof

Ambient temperature: 50°C

Electrical type: PSC low speed, cap start/cap run high speed

Rotation: clockwise

Motor orientation: horizontal

Opp drive end bearing: ball

Shaft type: threaded

Mounting: C-face

Drive end bearing: ball

Dimensions:

Shaft diameter: 0.62″

Frame length: 8″

Shaft extension: 2.57″

Material(s): rolled steel/stainless steel
