Product Features:

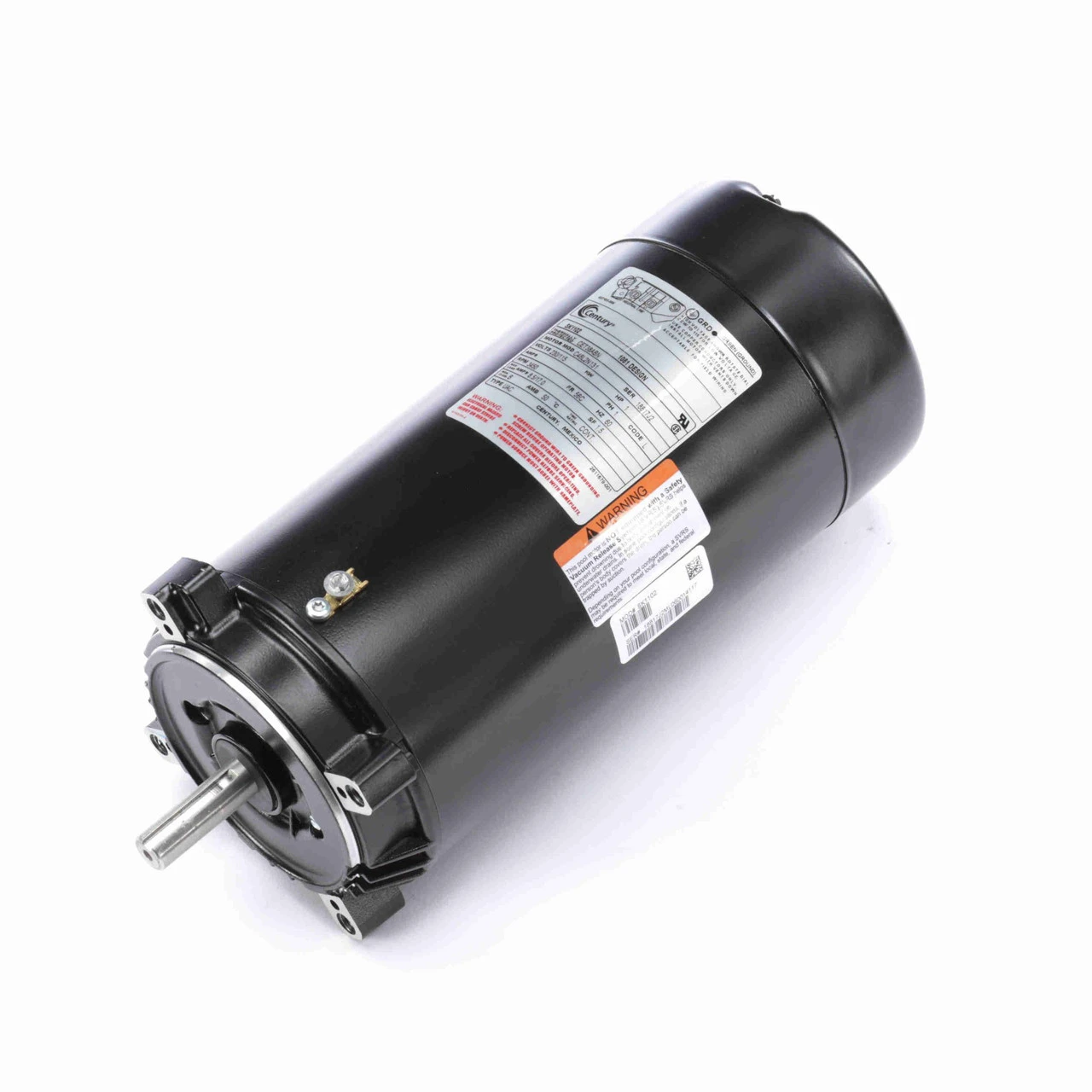

Key shaft motor is used for in ground swimming pool pumps
Its sealed ball bearings promise a long-lasting lifespan
Motor has open drip proof and sealed switch design
Stainless steel shaft for corrosion protection
Class B insulation prevents meltdowns and overheating
Includes capacitor start and capacitor run
Additional Features:
Horsepower: 1 HP
Output: 0.75 kW
Frequency: 60 Hz
Voltage: 230 – 115 V
Current: 8.5 – 17.0 A
Speed: 3450 RPM
Service Factor: 1.5
Phase: 1
Duty: continuous
Thermal Protection: automatic
Enclosure: open drip proof
Ambient Temperature: 50 °C
Electrical Type: cap start motor
Rotation: counterclockwise pump end
Mounting: C face
Drive End Bearing: ball
Motor Orientation: horizontal
Opp Drive End Bearing: ball
Frame Material: rolled Steel
Shaft Type: keyed
Overall Length: 14.19″
Frame Length: 8.88″
Shaft Diameter: 0.625″
Shaft Extension: 2.06″
Material(s): stainless steel
| Weight | Width | Height | Depth | Assembly Requirements |
|---|---|---|---|---|
| 1.00 LBS | 1.00″ | 1.00″ | 1.00″ | No assembly required |
