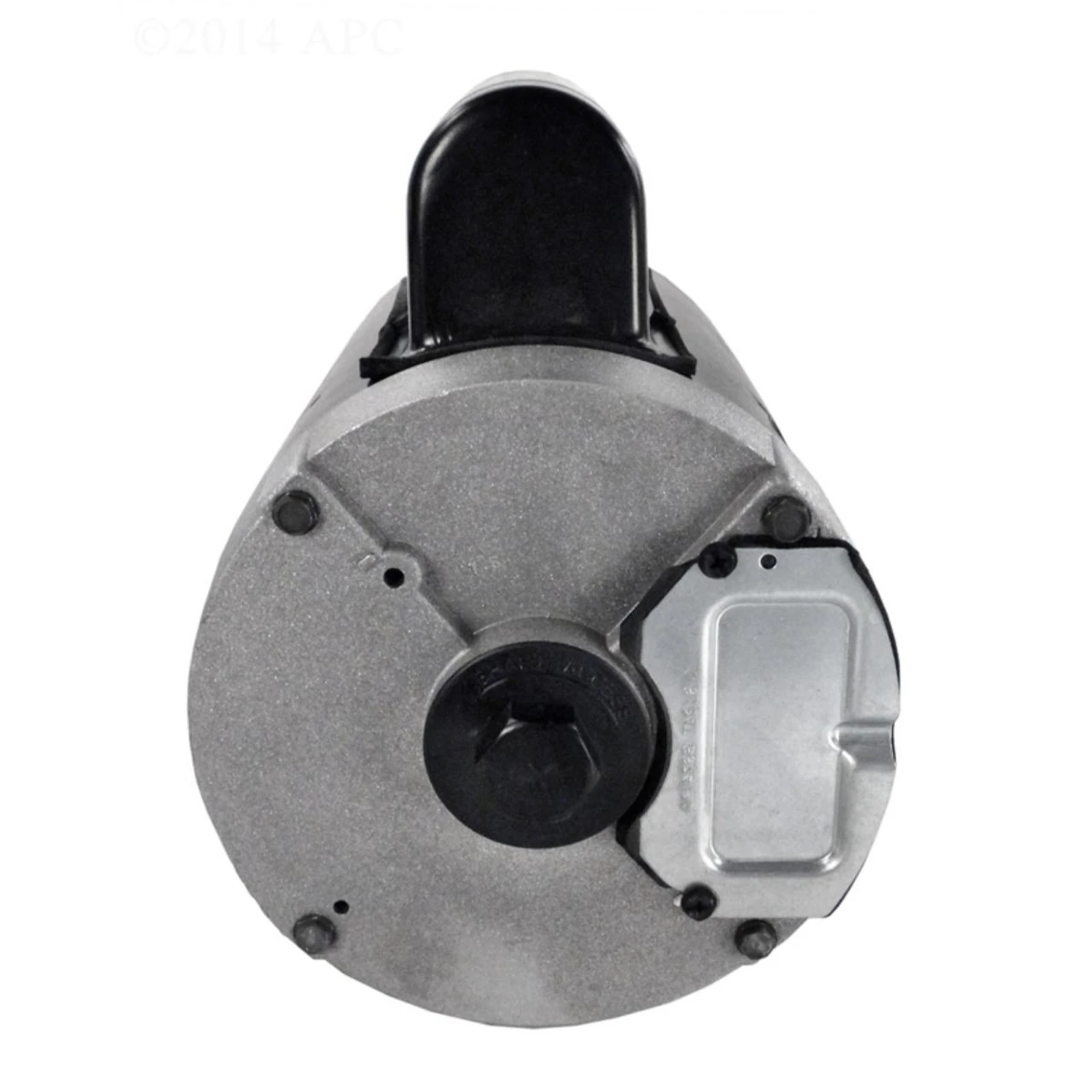

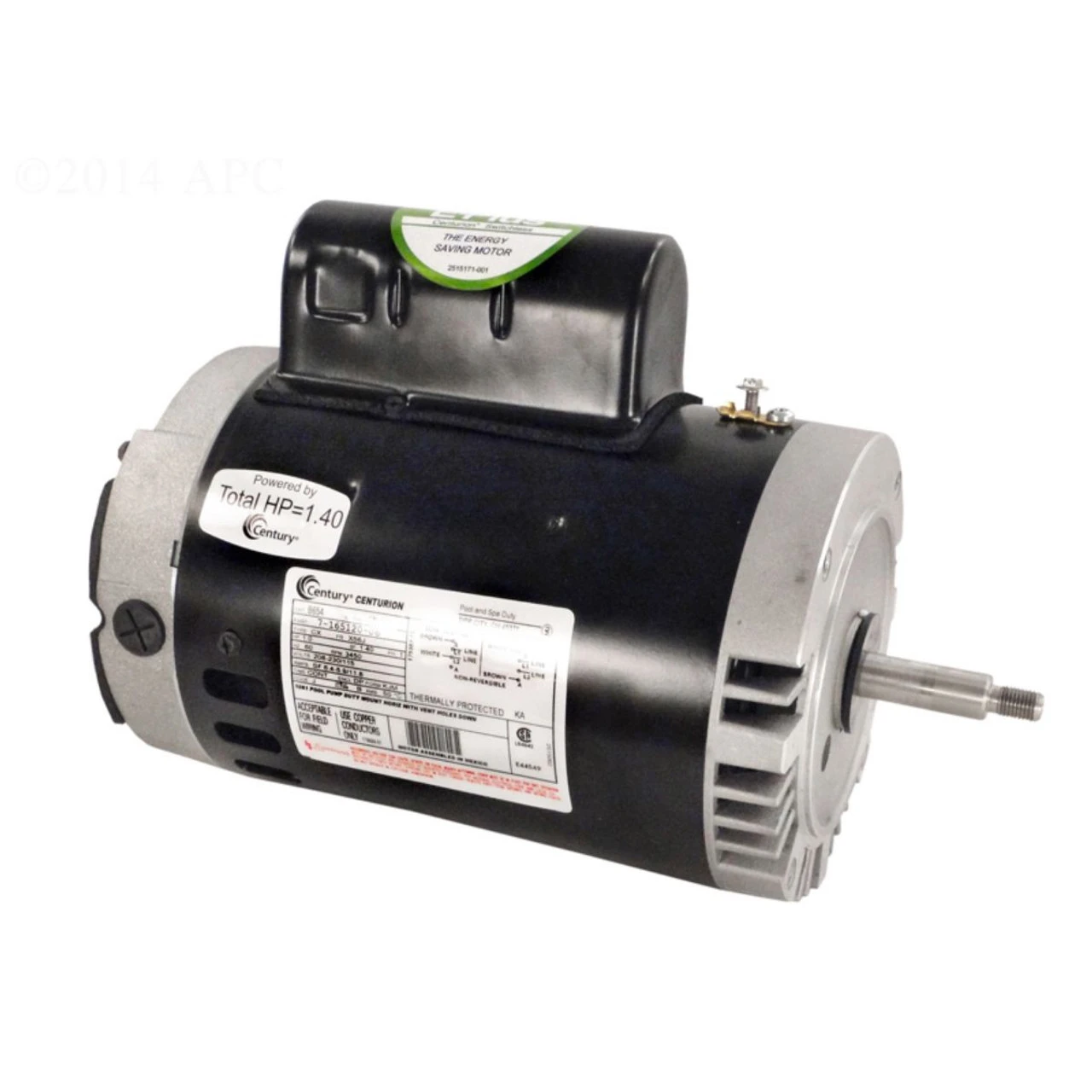

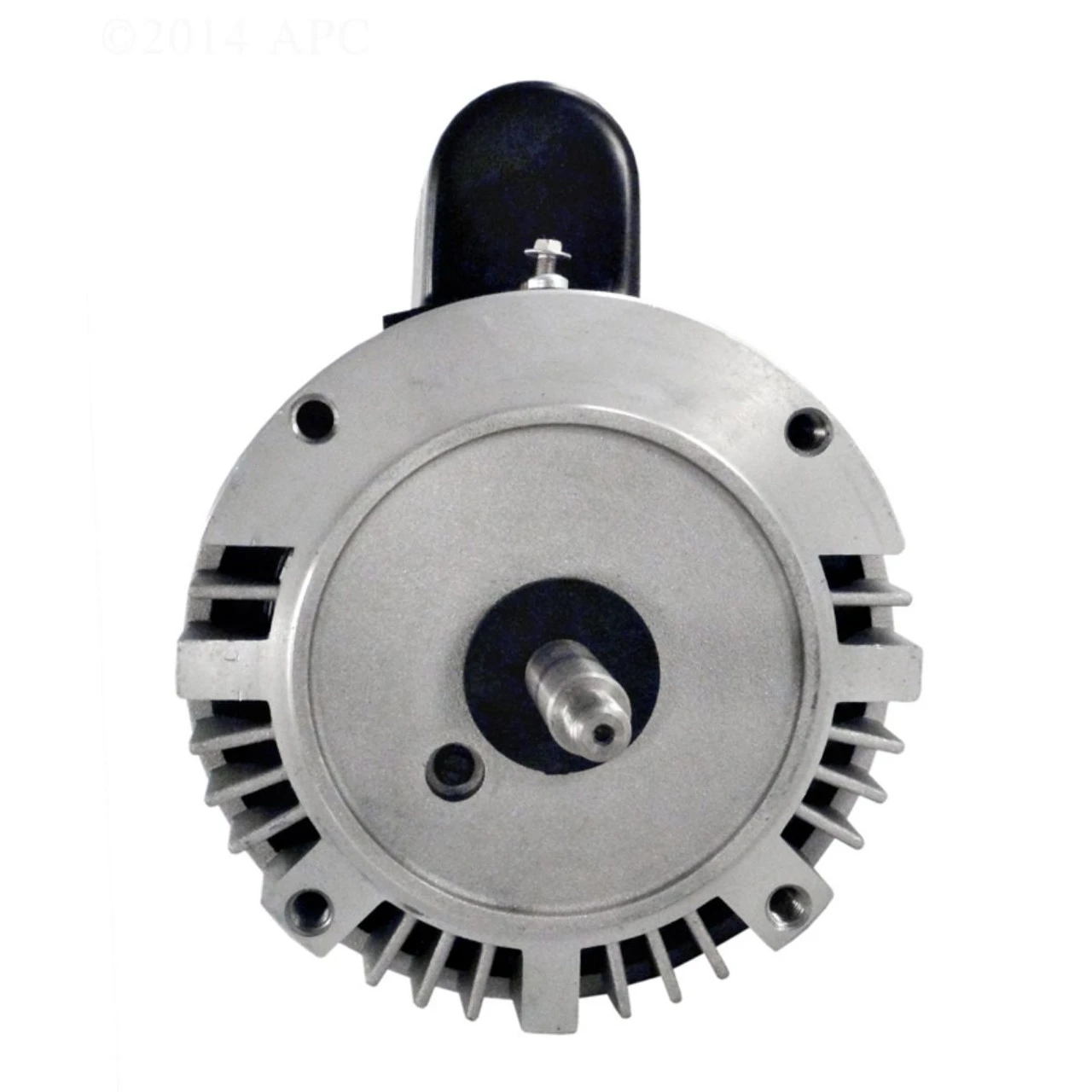

1 HP C-Face Full Rated Pool Pump Motor, 1.40 SF

Are you looking for a reliable motor for your swimming pool? Mechanical devices are meant to be long-lasting, efficient and cheap, just like this quality motor. Don’t just settle with some regular motor by throwing your money, grab this precise piece of engineering and live the day!

Product Features:

Full rated energy-efficient switchless pool pump motor

Stainless steel shaft for corrosion protection

Sealed ball bearings reduce wear and tear

Bearing shaft end

Open drip-proof design allows air to circulate through the windings

Permanent split capacitor for enhanced running efficiency

Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:

Output HP: 1.0

Frequency: 60 Hz

Current: SF 6.4-5.9/11.8 A

Service Factor: 1.40

Frame: X56J

Output KW: 0.75 kW

Voltage: 208-230/115 V

Speed: 3450 rpm

Phase: 1

Insulation class: B

Enclosure: drip proof

Ambient temperature: 50°C

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: ball

Shaft type: threaded

Mounting: C-face

Drive end bearing: ball

Dimensions:

Shaft diameter: 0.625″

Frame length: 7.50″

Shaft extension: 2.56″

Material(s): rolled steel/stainless steel
