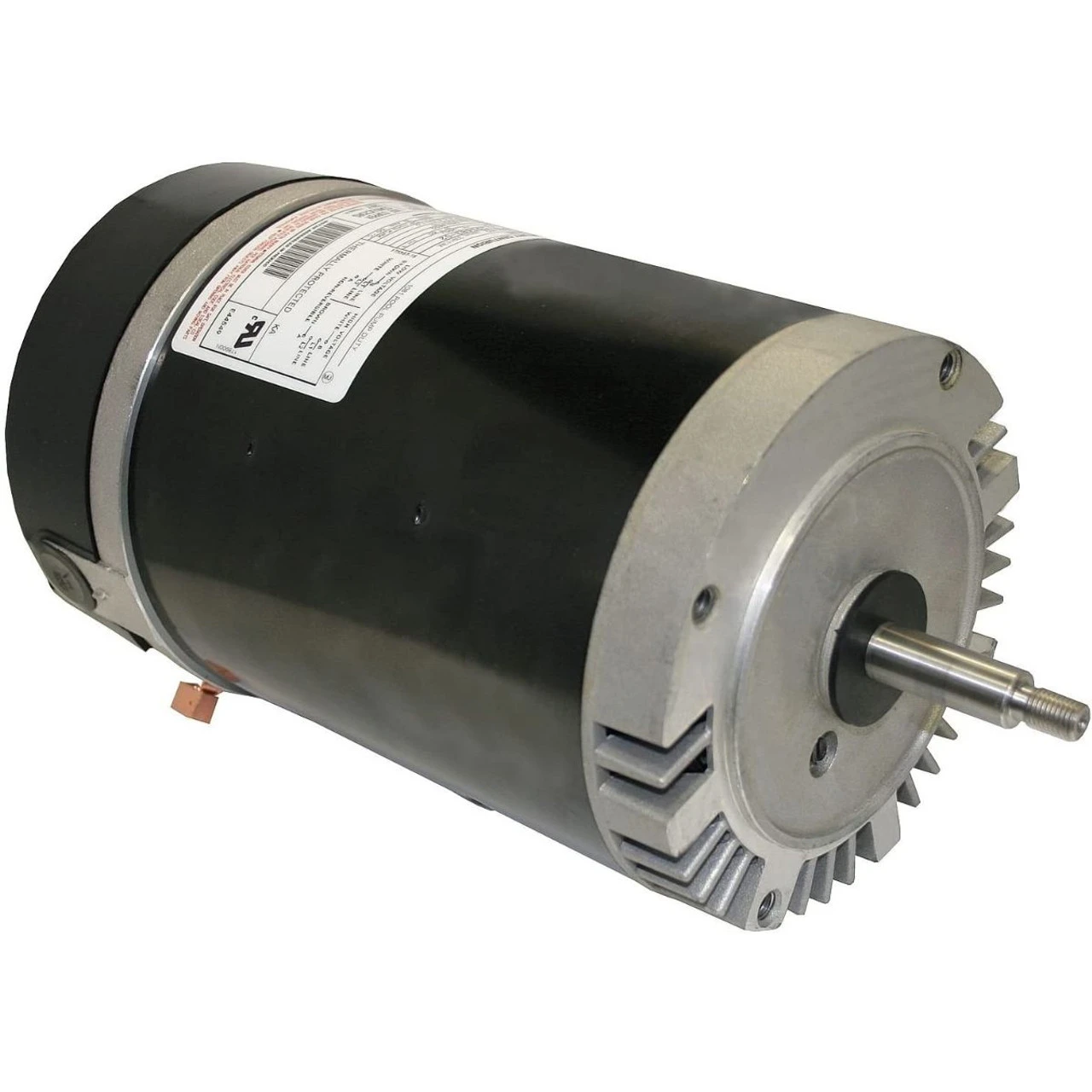

1 HP C Face Threaded Shaft Horizontal Pool Pump Northstar Motor, 1.4 SF

Here comes the 1 HP as the ideal replacement motor for your pools. Easing you out, it tackles moisture issues and ensures a suitable overflow. This valuable addition provides highly efficient maintenance.

Product Features:

Switch less rigid base pool pump motor

Motor has a threaded shaft

Haywared Northstar replacement

Cool running for longer winding life

E-coated main frame for superior corrosion resistance

Energy efficient and low noise

Single phase motors

Additional Features:

Output HP: 1 Hp

Current: SF 6.0-5.5/11.0 A

Frequency: 60 Hz

Service Factor: 1.4

Duty: continuous

Frame size: U56J

Protector: thermally protected

UL: recognized

Output KW: 0.75 kW

Voltage: 208-230/115 V

Speed: 3450 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: B

Enclosure: drip proof

CSA: Y

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: C face

Drive end bearing: BALL BRG

Dimensions:

Frame length: 7″

Shaft extension: 2.56″

Overall length: 13.10″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
