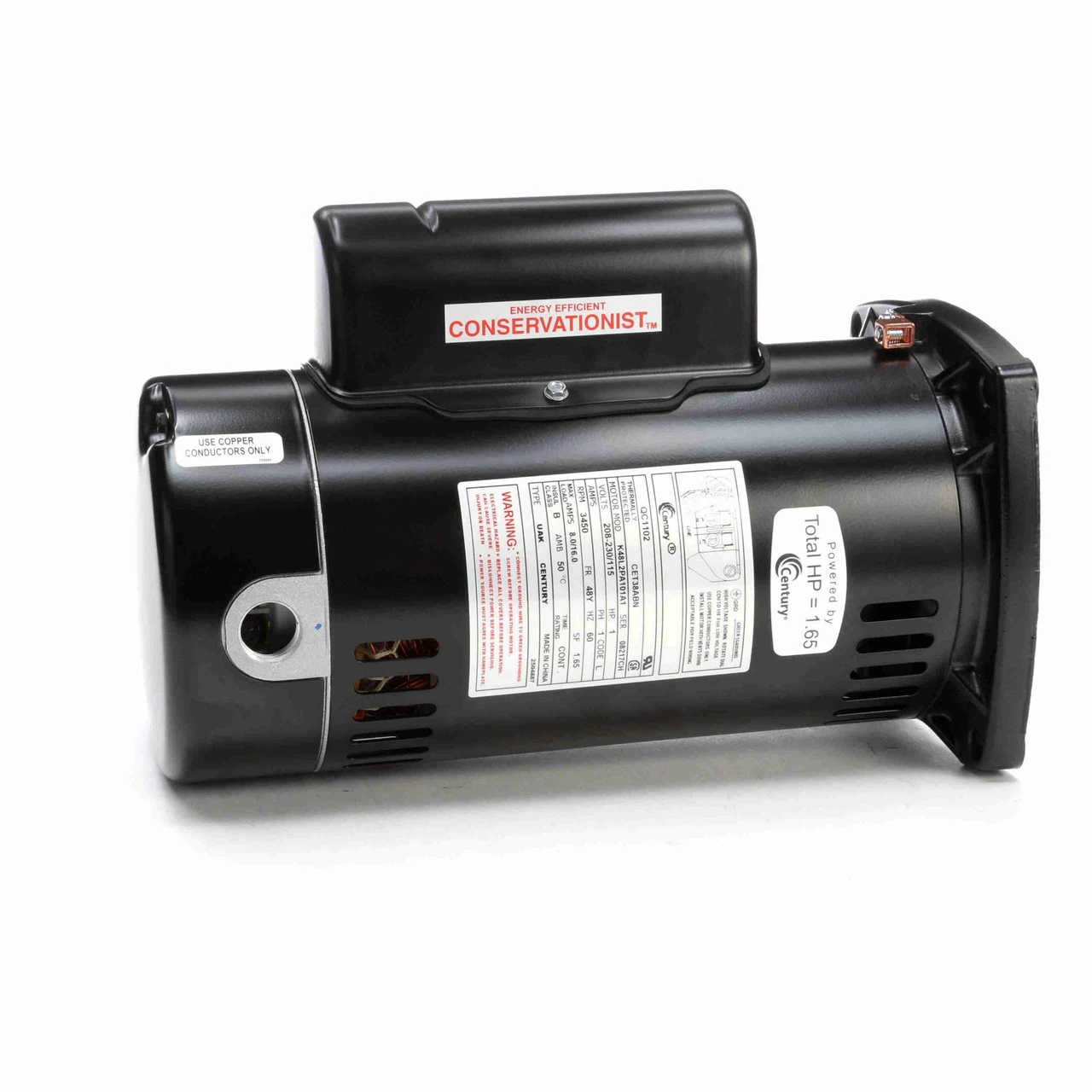

1 HP Square Flange Threaded Shaft Single Phase Horizontal Pool Pump Motor

Make sure you have all of the equipment to maintain your space without any hassles. The SQ face motor will also be energy-efficient, saving your money. You don’t have to worry about the genuineness of this quality motor.

Product Features:

Energy-efficient pool pump motor

Stainless steel shaft for corrosion protection

Sealed ball bearings

Pump motor has a threaded shaft that allows for convenient and direct mounting

Open drip proof design allows air to circulate through the windings

Additional Features:

Output HP: 1 HP

Frequency: 60 Hz

Current: 8.0-8.0/16.0 A

Service factor: 1.65

Output KW: 0.75 kW

Voltage: 208-230/115 V

Speed: 3450 rpm

Poles: 2

Phase: 1

Insulation class: B

Mounting: square flange

Drive end bearing: ball

Enclosure: open drip proof

Ambient temperature: 50°C

Frame: 48Y

Thermal protection: thermally protected

Motor orientation: horizontal

Electrical type: capacitor start capacitor run

Rotation: counter clockwise pump end

Dimensions:

Shaft diameter: 0.625″

Shaft extension: 0.906″

Frame length: 8.69″

Material(s): stainless steel

Frame material: rolled steel
