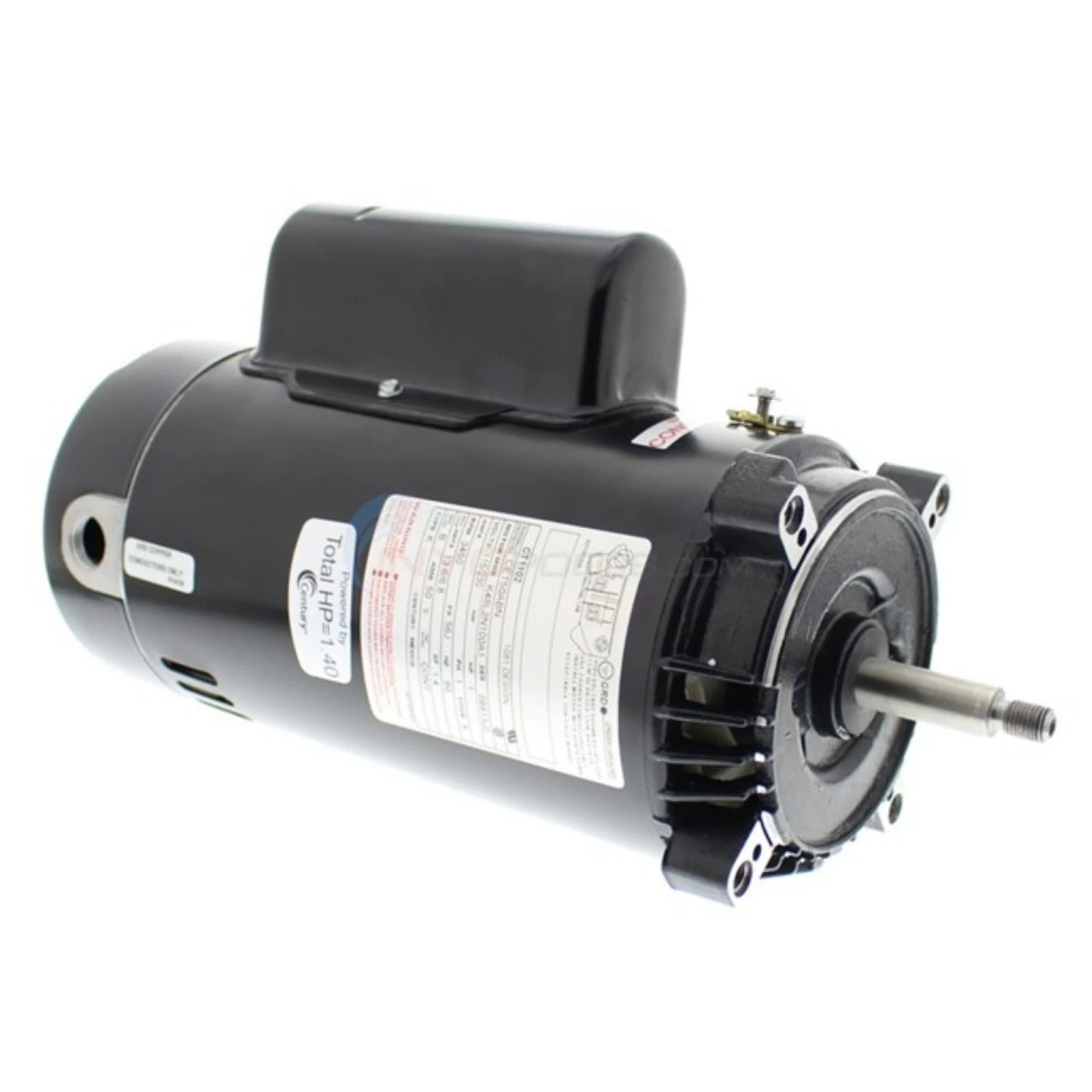

1 HP Threaded Shaft Full-Rated Two-Compartment Pool Pump Motor

Grab this energy-efficient motor and protect your pools now. This high flow rate motor pump creates very little noise. The motor pump also ensures that no garbage enters the motor and chokes it.

Product Features:

Includes sealed ball bearings and sealed witch design

Capacitor start-capacitor run

Withstand ambient temperature up to 50°C

303 stainless steel shaft for corrosion protection

Additional Features:

Output HP: 1 Hp

Output KW: 0.75 kW

Frequency: 60 Hz

Voltage: 230/115 V

Current: 6.8/13.6 A

Speed: 3450 rpm

Service factor: 1.4

Phase: 1

Duty: continuous

Insulation class: B

Frame: 56J

Enclosure: open drip proof

Thermal protection: automatic

Electrical type: capacitor start capacitor run

Poles: 2

Rotation: counterclockwise pump end

Mounting: C face

Motor orientation: horizontal

Drive end bearing: ball

Shaft type: threaded

Dimensions: 14.7″ long

Shaft diameter: 0.625″

Shaft extension: 2.57″

Frame length: 8.75″

Material(s): stainless steel

Frame: rolled steel
