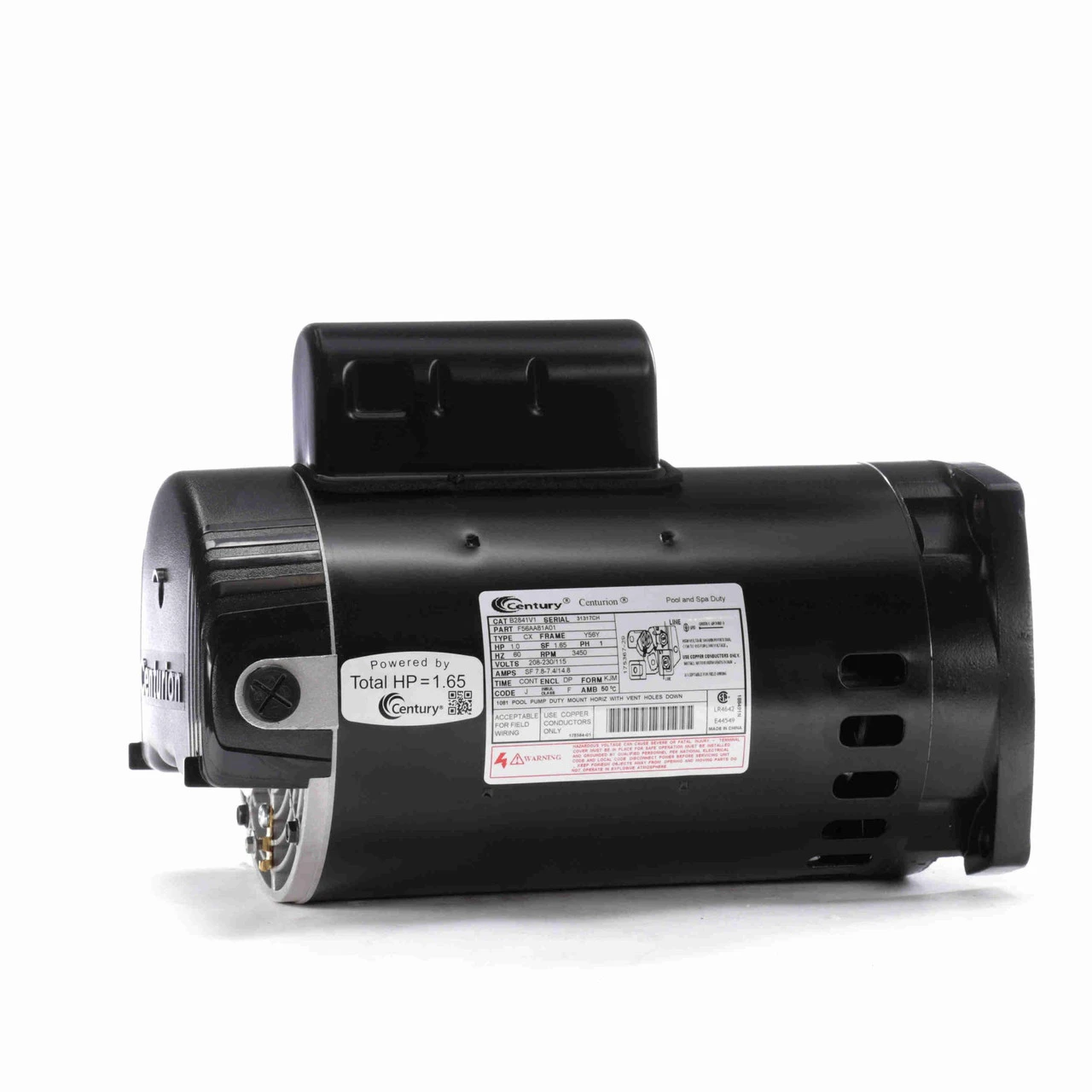

1 HP Threaded Shaft Horizontal Pool Pump Motor, 1.65 SF

High efficiency is the biggest highlight of this motor! Enjoy your time in the swimming pool by having this enduring motor. Generating an output power of 1 HP, this motor is an asset!

Product Features:

Switchless threaded shaft pool pump motor

Comes with voltage change device and stainless steel shaft

Includes open and accessible terminal board and wiring compartment

Contains open drip-proof technology

Additional Features:

Output HP: 1.0 Hp

Current: SF 7.8-7.4/14.8 A

Frequency: 60 Hz

Service Factor: 1.65

Duty: continuous

Frame size: Y56Y

Protector: thermally protected

UL: recognized

Output KW: 0.75 kW

Voltage: 208-230/115 V

Speed: 3450 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: F

Enclosure: drip proof

CSA: Y

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: round

Drive end bearing: BALL

Dimensions:

Frame length: 9″

Shaft extension: 0.91″

Overall length: 13.40″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
