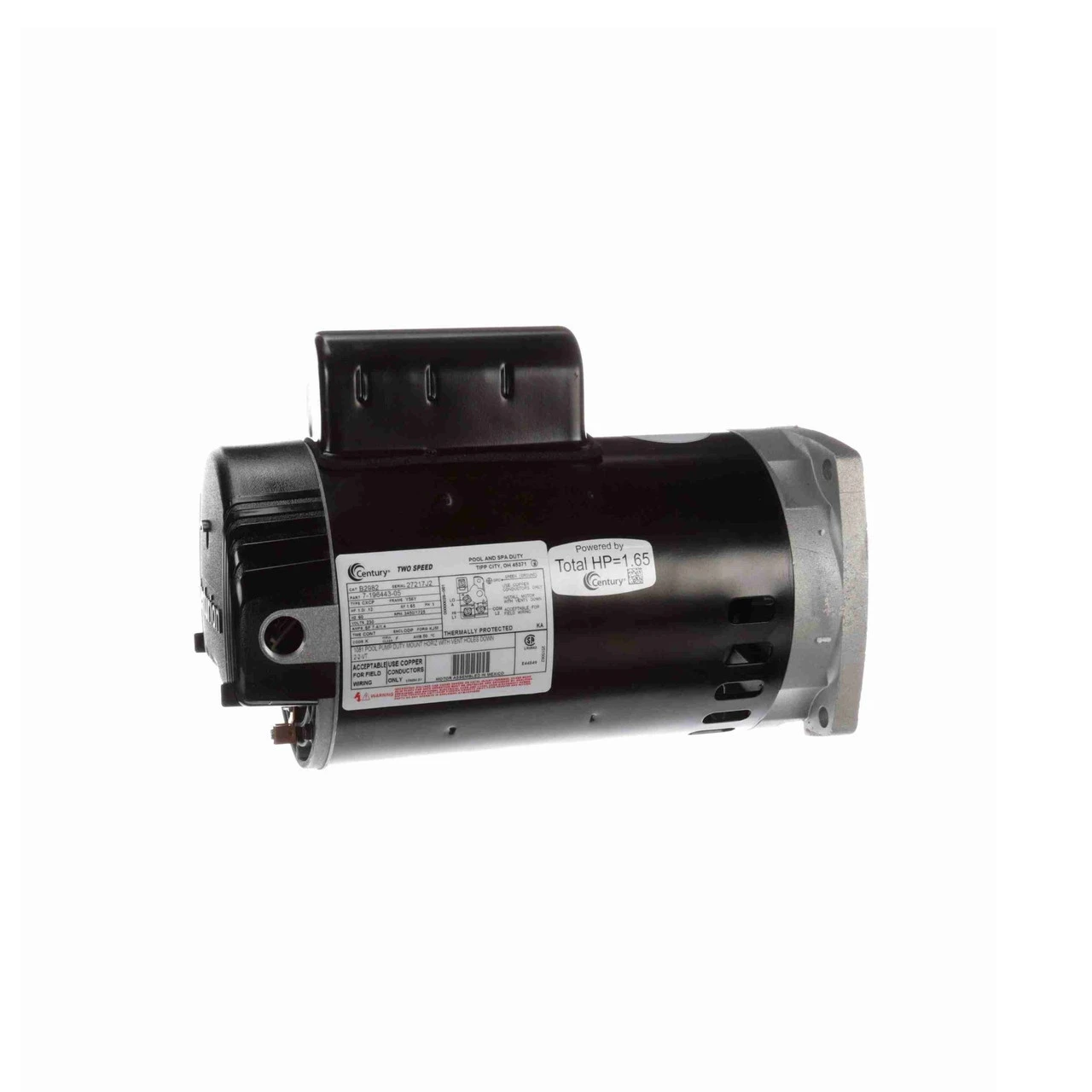

1 To 0.12 HP Square Flange Dual Speed Pool Pump Motor, 1.65 SF

Here’s a pure masterpiece in terms of quality and functionality. Mechanical devices are meant to be long-lasting, efficient and cheap, just like this quality motor. Don’t just settle with some regular motor by throwing your money, grab this precise piece of engineering and live the day!

Product Features:

Square flange full rated dual speed pool pump motor

Stainless steel shaft for corrosion protection

Sealed ball bearings reduce wear and tear

Energy-efficient high and low speed

Open drip-proof design

Permanent split capacitor for enhanced running efficiency

Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:

Output HP: 1/0.12

Frequency: 60 Hz

Current: SF 7.4/1.4 A

Service factor: 1.65

Frame: Y56Y

Output KW: 0.75 kW

Voltage: 230 V

Speed: 3450/1725 rpm

Phase: 1

Insulation class: F

Enclosure: open drip proof

Ambient temperature: 50°C

Electrical type: PSC low speed, cap start/cap run high speed

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: ball

Shaft type: threaded

Mounting: square flange

Drive end bearing: ball

Dimensions:

Shaft diameter: 0.62″

Frame length: 9″

Shaft extension: 0.91″

Material(s): rolled steel/stainless steel
