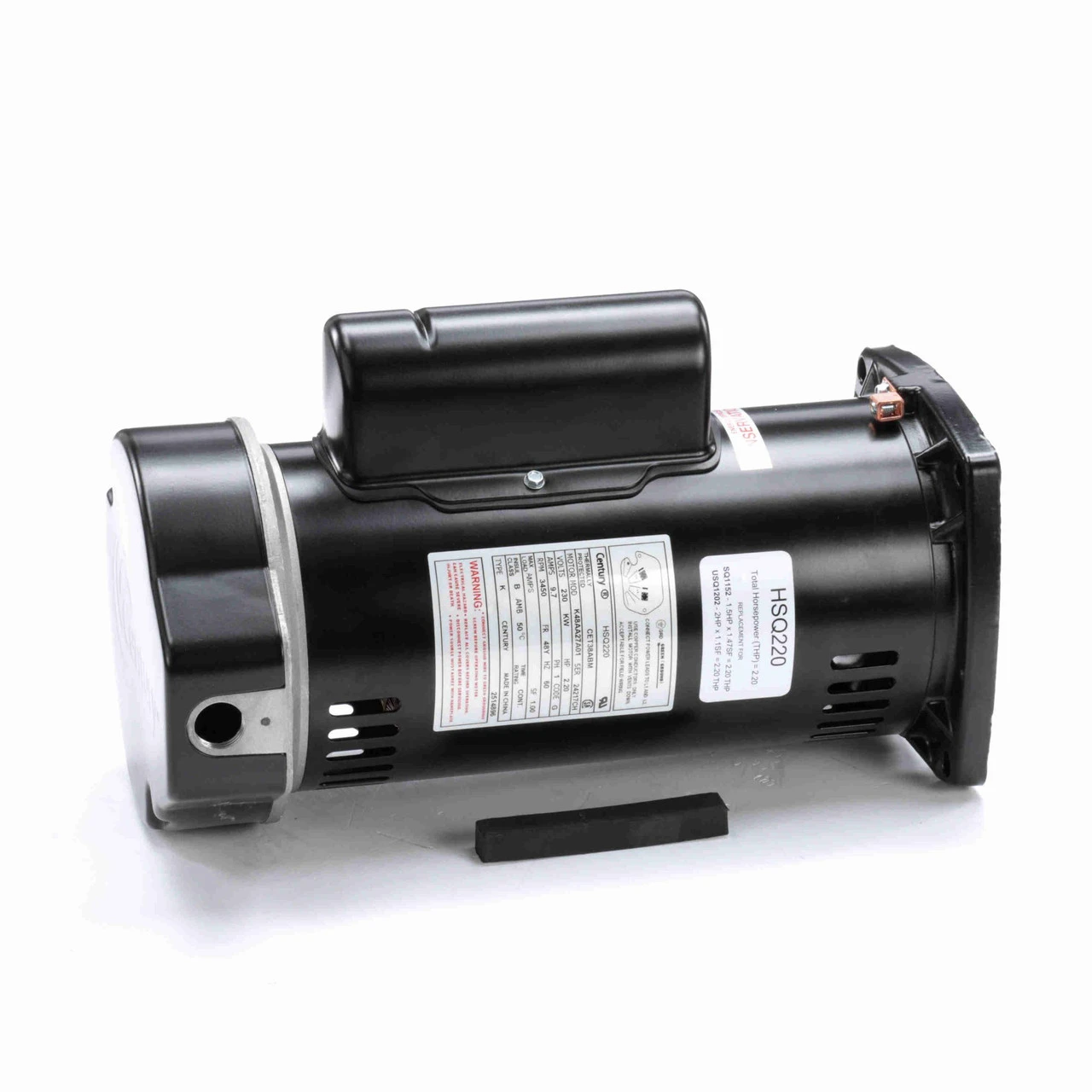

2.20 HP Square Flange Threaded Shaft Horizontal Pool Pump Motor

Energy-efficient motors are a must if you don’t want to spend much time maintaining the pools. The performance shortens run times and reduces energy consumption leading to lower operating costs. With this motor, you don’t have to compromise with performance and quality.

Product Features:

Stainless steel shaft for corrosion protection

New triple seal protection on pump end bearing

Voltage change device

Premium sealed 203 bearings both ends

Definitive shaft access (7/16″ wrench)

Open accessible terminal board and wiring compartment for easy installation

Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:

Output HP: 2.20 HP

Frequency: 60 Hz

Current: 9.7 A

Service factor: 1

Output KW: 1.6 kW

Voltage: 230 V

Speed: 3450 rpm

Poles: 2

Phase: 1

Insulation class: F

Mounting: square flange

Drive end bearing: ball

Enclosure: open drip proof

Ambient temperature: 50°C

Frame: 48Y

Thermal protection: automatic

Motor orientation: horizontal

Electrical type: capacitor start capacitor run

Rotation: counter clockwise pump end

Dimensions:

Shaft diameter: 0.625″

Shaft extension: 0.906″

Frame length: 10.13″

Material(s): stainless steel

Frame material: rolled steel
