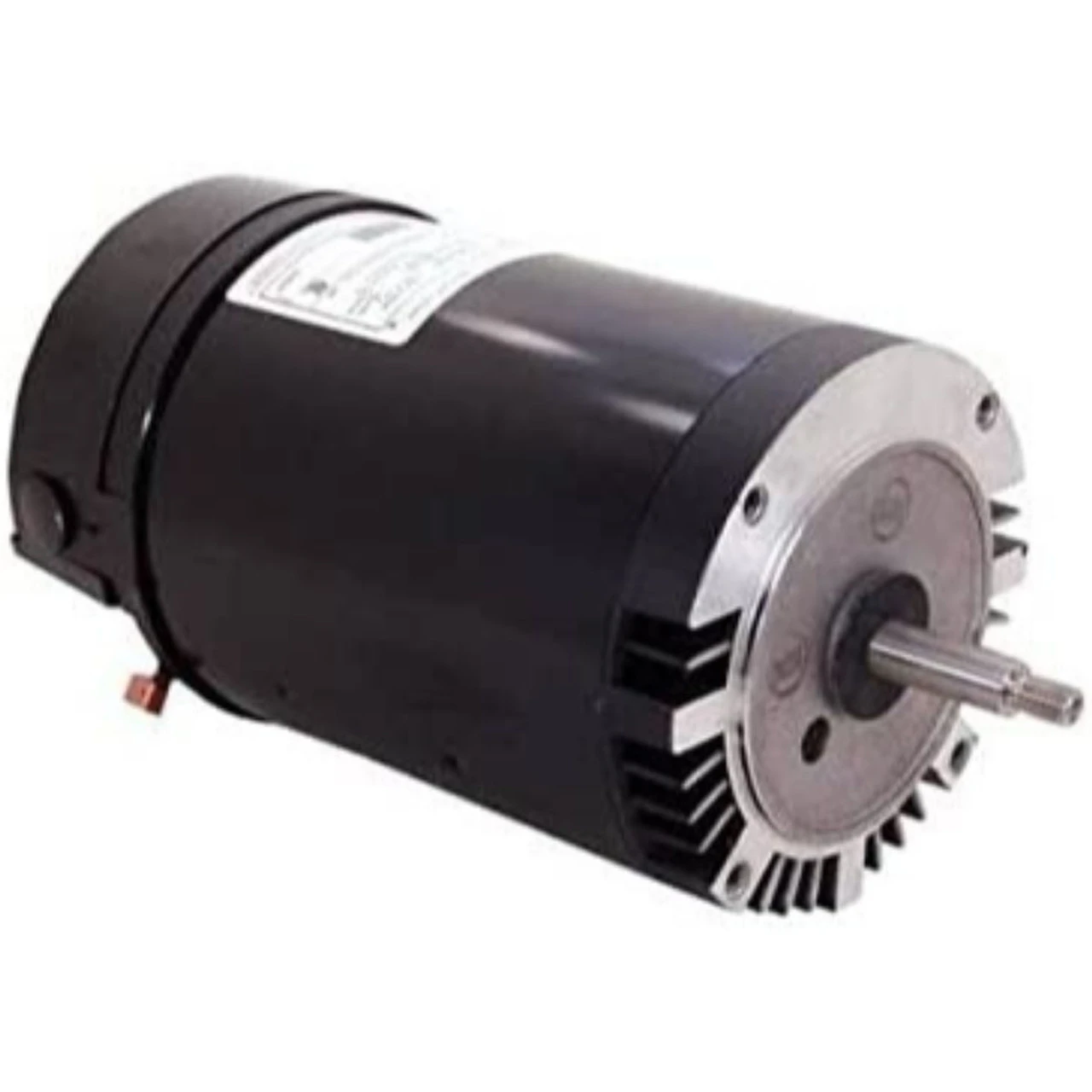

2.5 HP C Face Threaded Shaft Horizontal Pool Pump Northstar Motor, 1.1 SF

Here comes the 2.5 HP as the ideal replacement motor for your pools. Easing you out, it tackles moisture issues and ensures a suitable overflow. This valuable addition provides highly efficient maintenance.

Product Features:

Switch less rigid base pool pump motor

Motor has a threaded shaft

Haywared Northstar replacement

Cool running for longer winding life

E-coated main frame for superior corrosion resistance

Energy efficient and low noise

Single phase motors

Additional Features:

Output HP: 2.5 Hp

Current: SF 13.0-11.8 A

Frequency: 60 Hz

Service Factor: 1.1

Duty: continuous

Frame size: Y56J

Protector: thermally protected

UL: recognized

Output KW: 1.9 kW

Voltage: 208-230 V

Speed: 3450 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: B

Enclosure: drip proof

CSA: Y

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: C face

Drive end bearing: BALL BRG

Dimensions:

Frame length: 8.50″

Shaft extension: 2.56″

Overall length: 14.60″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
