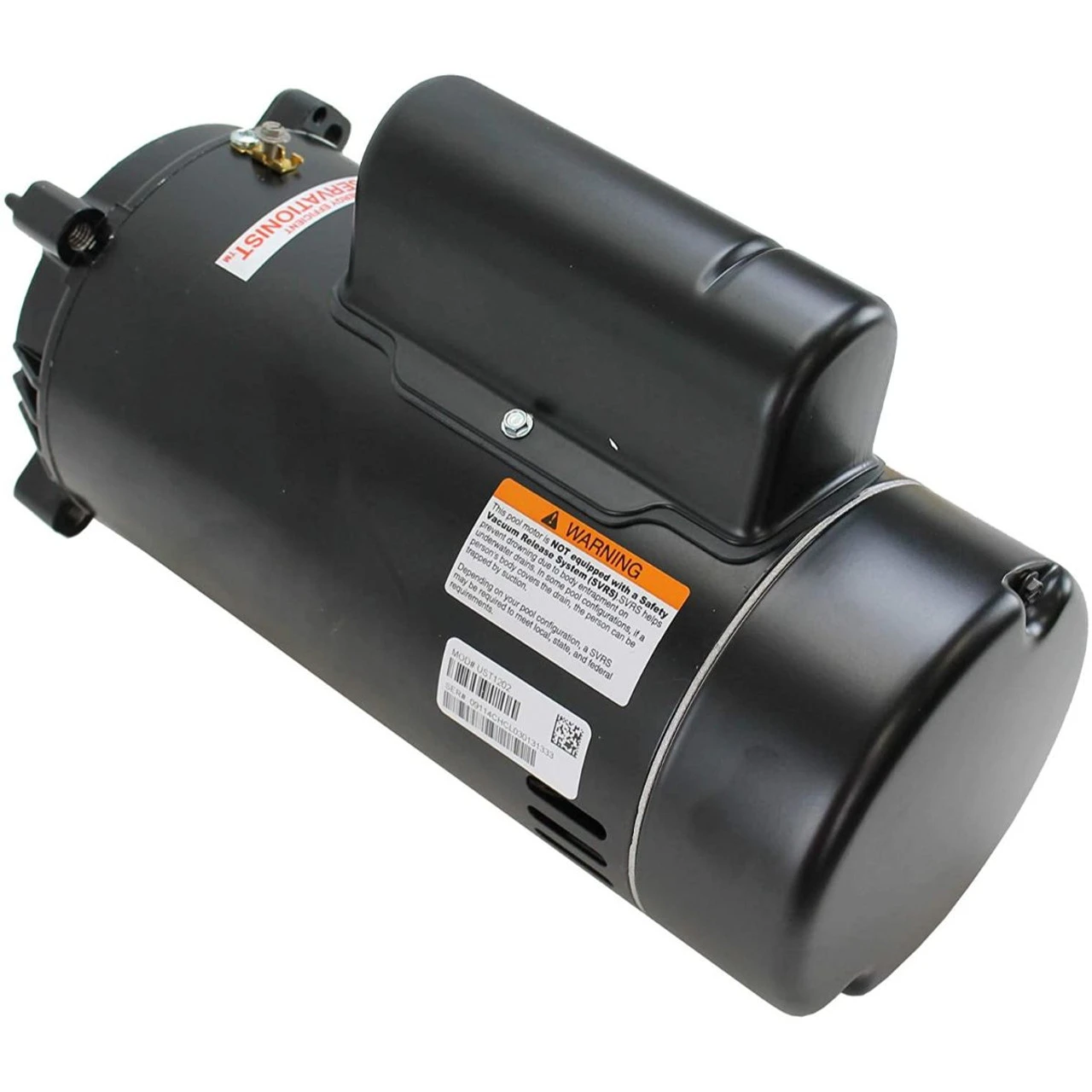

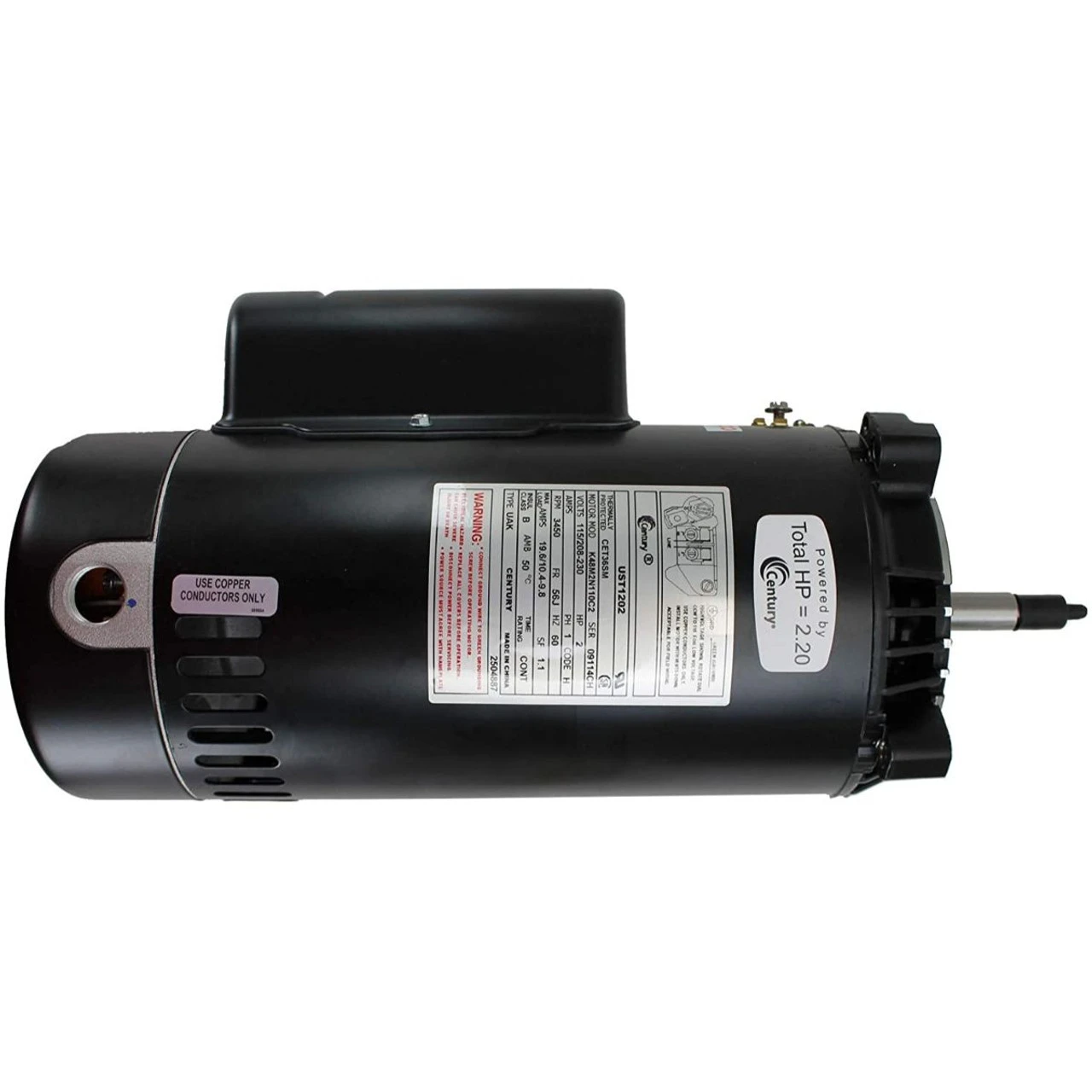

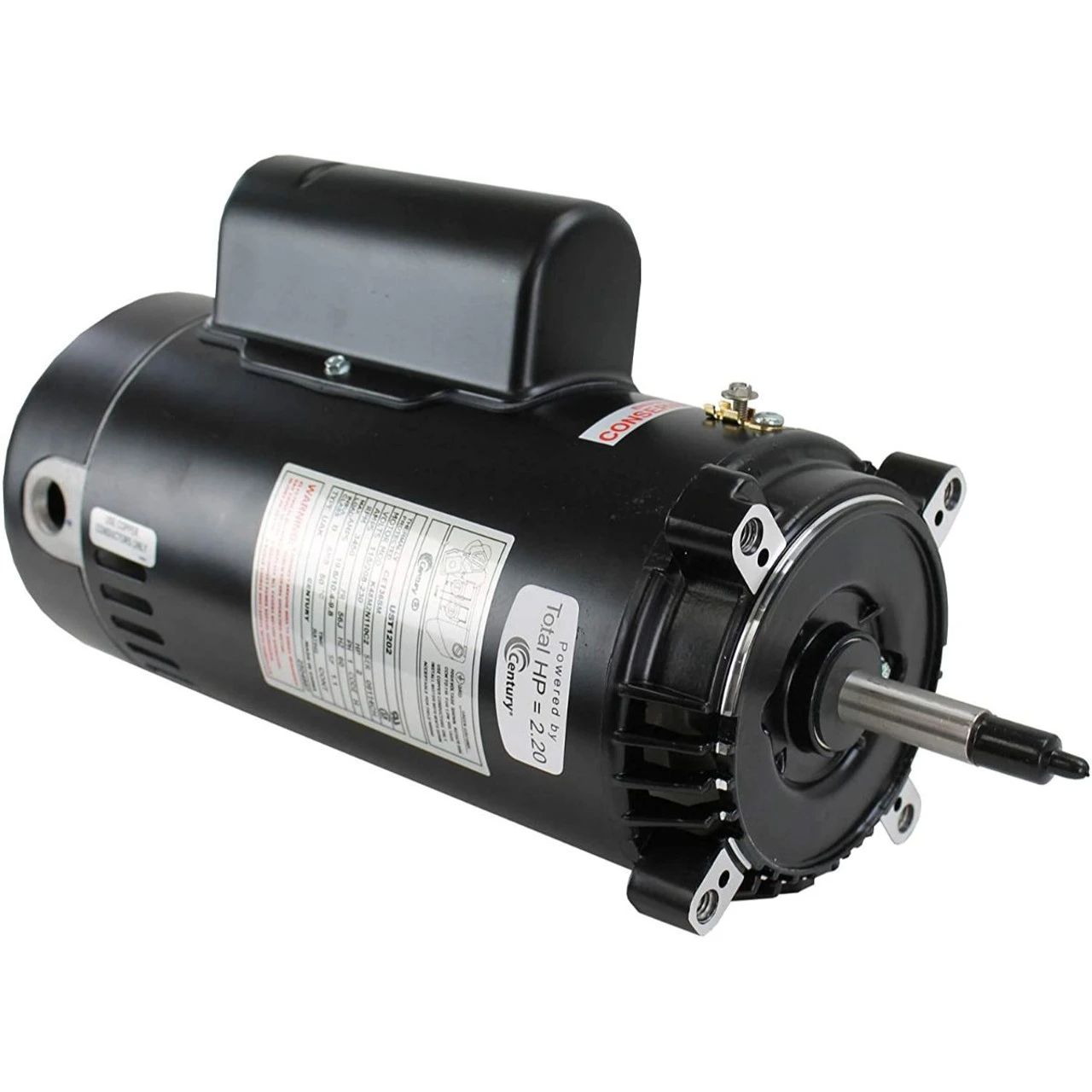

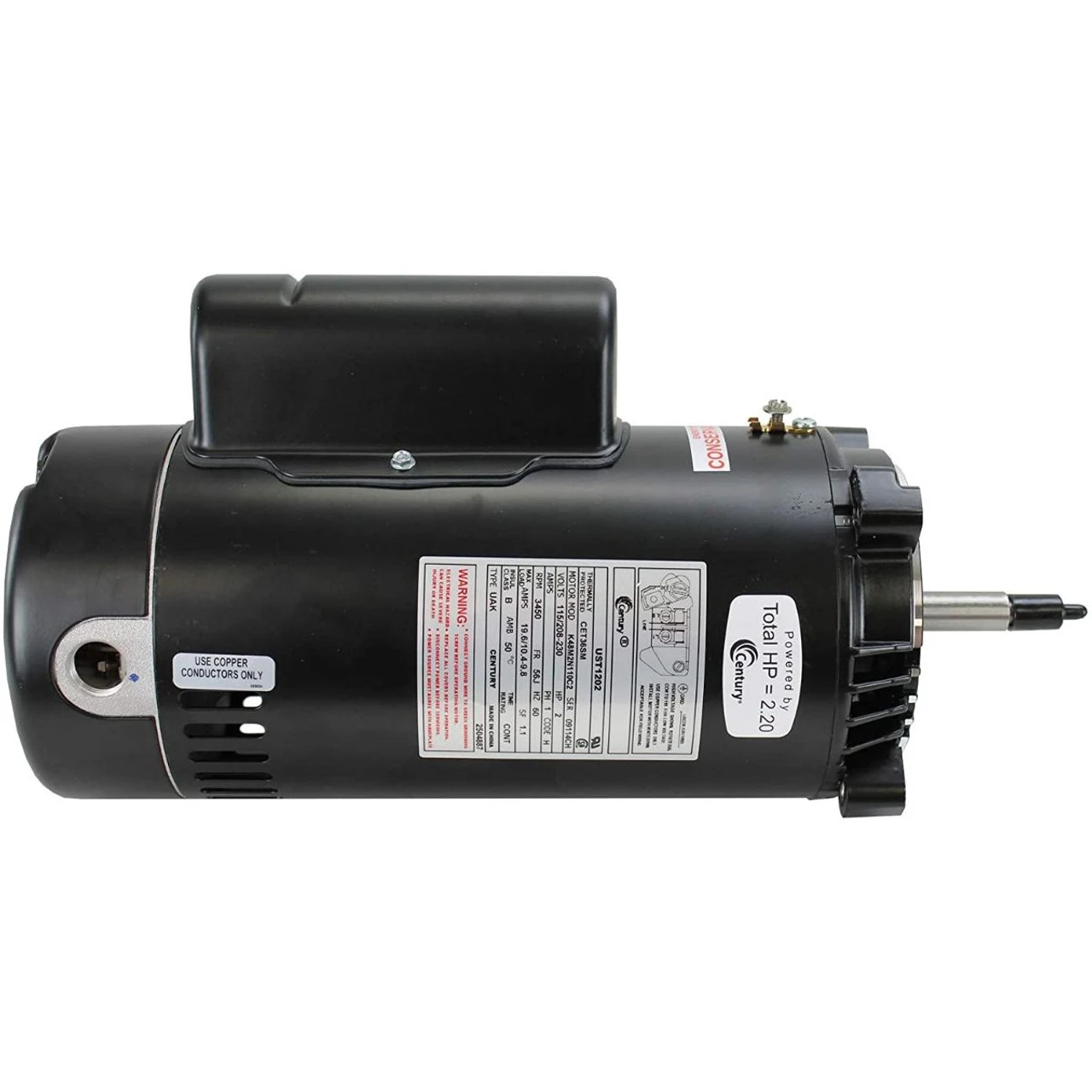

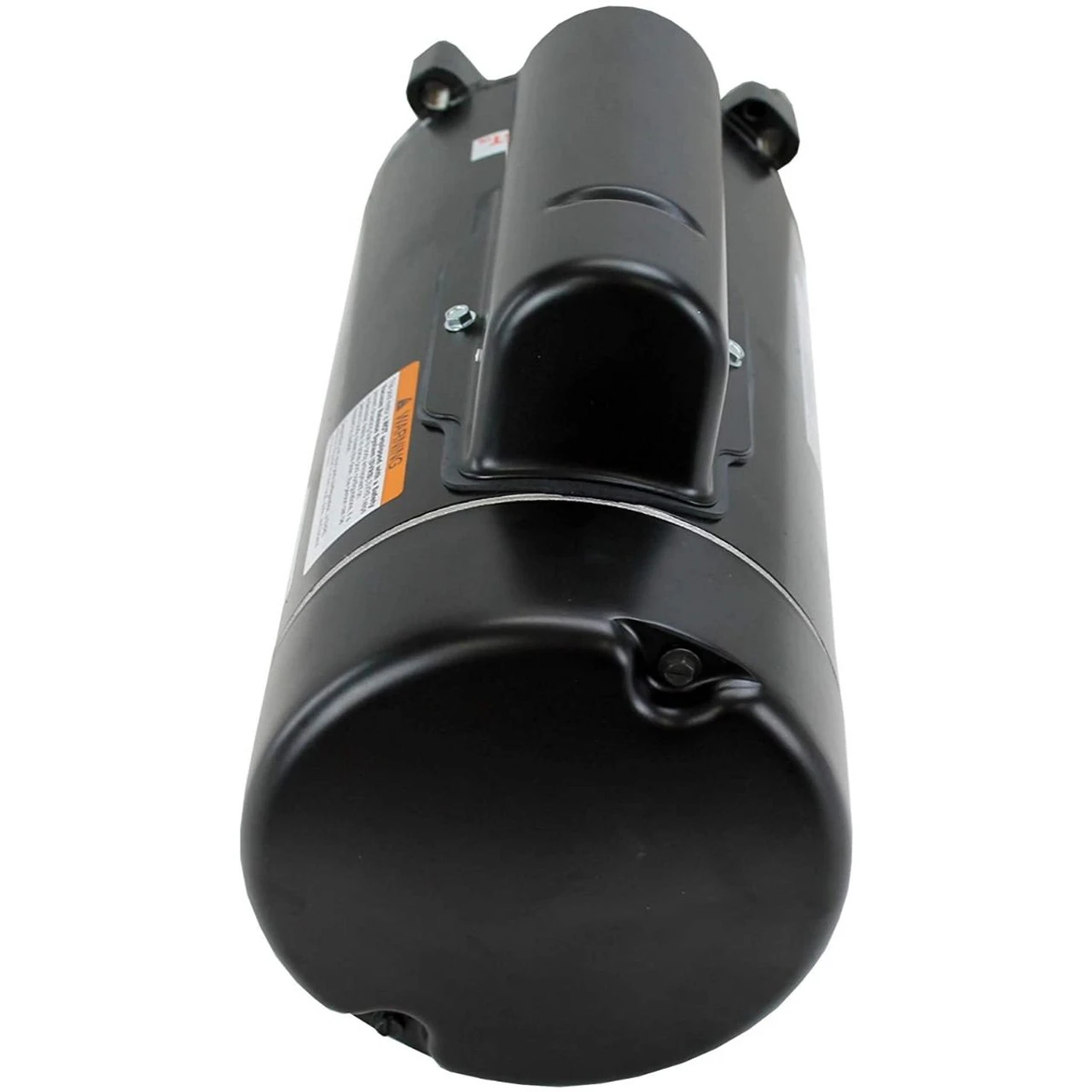

2 HP C Face Threaded Shaft Horizontal Pool Pump Motor, 1.1 SF

With a corrosion-resistant outer shell, this round-shaped flange motor protects your swimming pools. Easing you out, it has easy wiring access. This high-quality addition tackles moisture issues and ensures a suitable overflow.

Product Features:

Sealed switch design pool pump motor

Comes with 304 bearing shaft end and 303 stainless steel shaft

Capacitor start-capacitor run

UL 1081 design

Additional Features:

Output HP: 2 Hp

Current: 10.4-9.8/19.6 A

Frequency: 60 Hz

Service Factor: 1.1

Duty: continuous

Frame size: 56J

Protector: automatic

UL: recognized

Output KW: 1.5 kW

Voltage: 208-230/115 V

Speed: 3450 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: B

Enclosure: open drip proof

CSA: Y

Electrical type: capacitor start capacitor run

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: C face

Drive end bearing: BALL

Dimensions:

Frame length: 9.38″

Shaft extension: 2.56″

Overall length: 15.20″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
