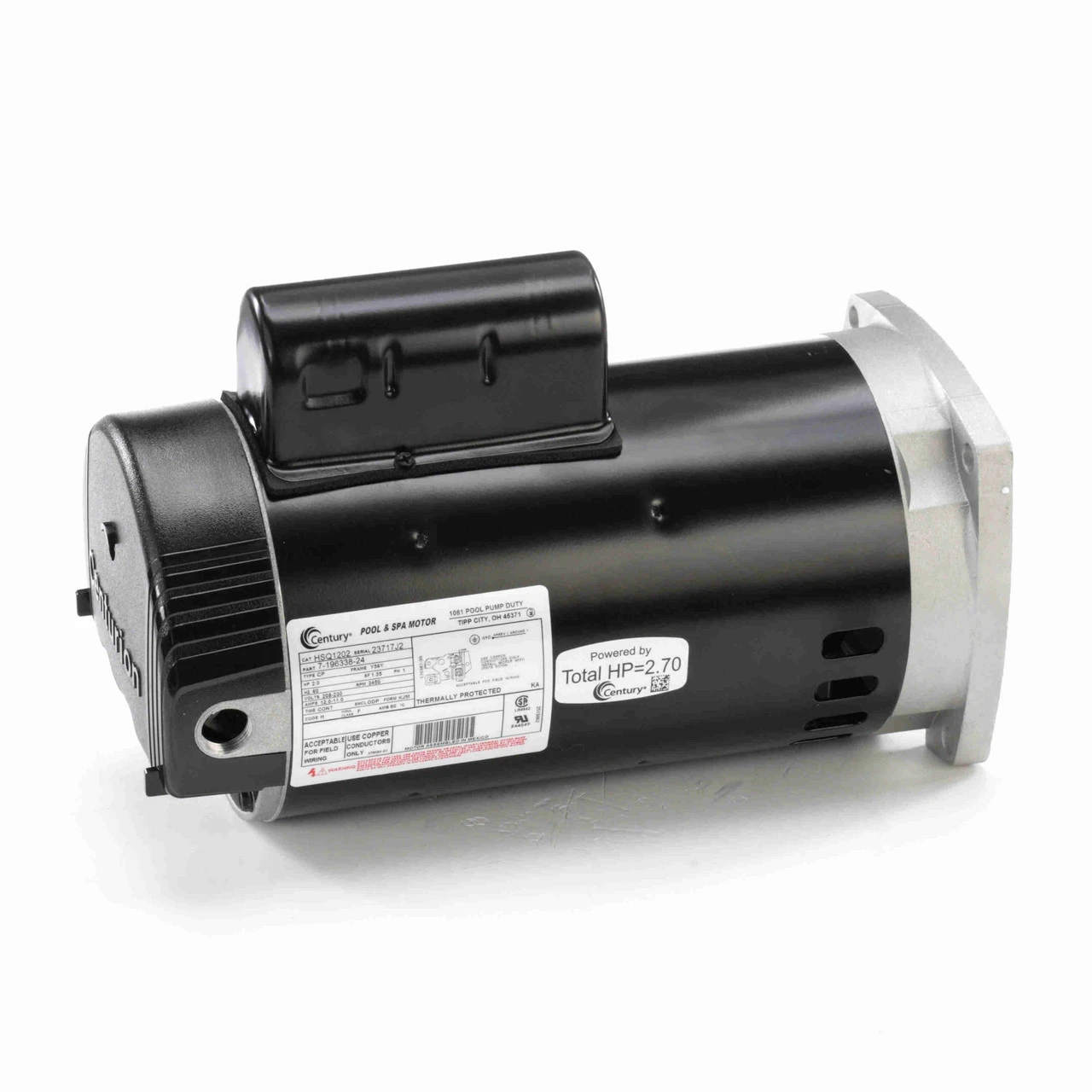

2 HP Square Flange Threaded Shaft Horizontal Pool Pump Motor

Shop this robust motor to make your maintaining work use. Excellent for use in homes or facilities such as swimming pools, cellars, garden ponds or flooded roads. Longevity will save you money in the long run.

Product Features:

Energy-efficient pool pump motor

Stainless steel shaft for corrosion protection

Motor includes a sealed ball bearing

Capacitor start/capacitor run

Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:

Output HP: 2.0 HP

Frequency: 60 Hz

Current: 12.0-11.0 A

Service factor: 1.35

Output KW: 1.5 kW

Voltage: 208-230 V

Speed: 3450 rpm

Poles: 2

Phase: 1

Insulation class: F

Mounting: square flange

Drive end bearing: ball

Enclosure: open drip proof

Ambient temperature: 60°C

Frame: Y56Y

Thermal protection: thermally protected

Motor orientation: horizontal

Electrical type: capacitor start, capacitor run, single or dual voltage

Rotation: counter clockwise pump end

Dimensions: 11″H x 9.5″W x 21.4″L

Shaft diameter: 0.625″

Shaft extension: 0.91″

Frame length: 9.75″

Material(s): stainless steel

Frame material: rolled steel
