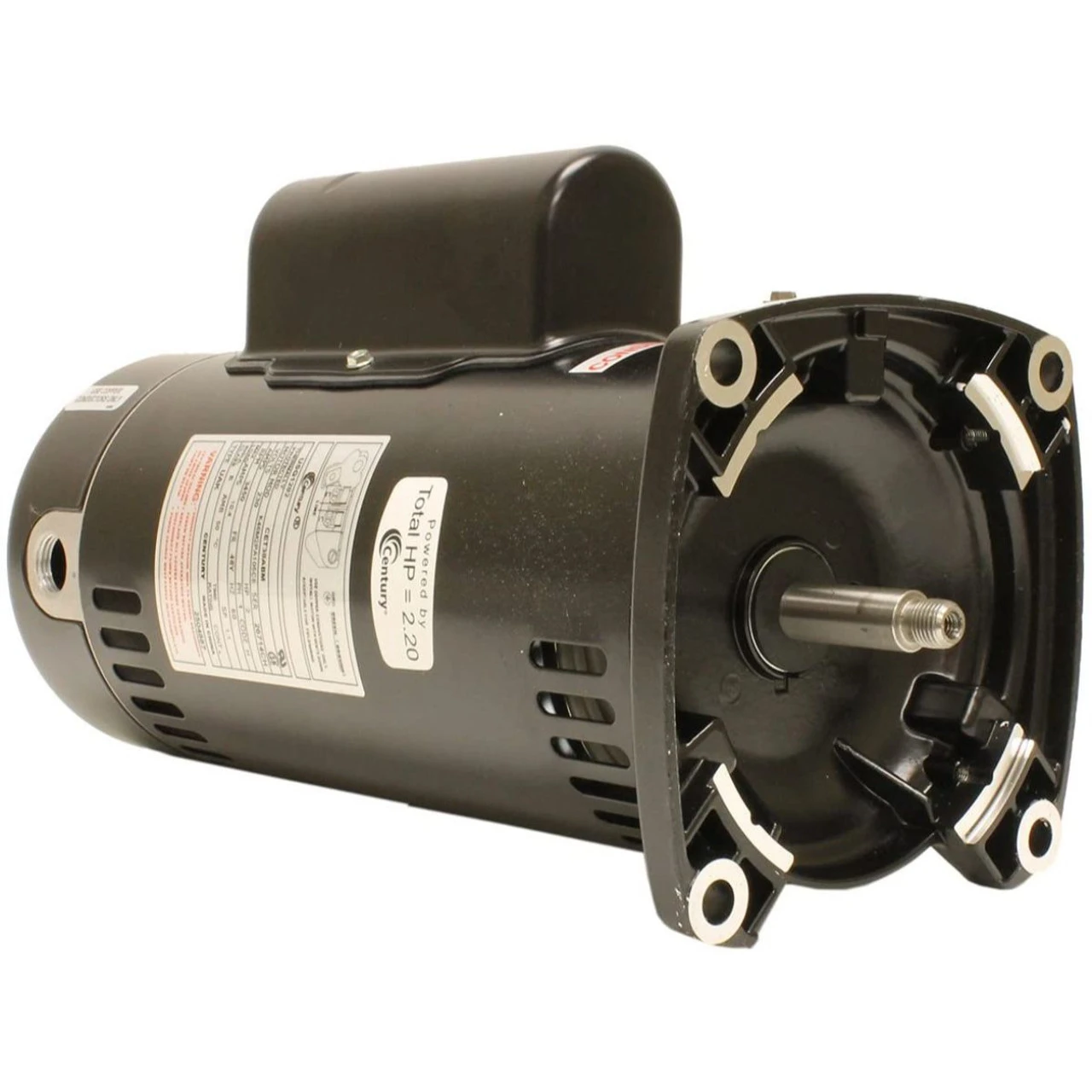

2 HP Square Flange Threaded Shaft Horizontal Pool Pump Motor, 1.1 SF

Be it for your swimming pool pumps or spa pumps; now you have the appropriate replacement motor. Showcasing a square flanged mounting, it follows the method of automatic protection. Providing an open drip-proof enclosure, you need not worry about excessive moisture.

Product Features:

Capacitor start pool pump motor

Motor has a threaded shaft

UL 1081 design

Energy efficient

Single phase motors

Additional Features:

Output HP: 2 Hp

Current: 10.4 A

Frequency: 60 Hz

Service Factor: 1.1

Duty: continuous

Frame size: 48Y

Protector: automatic

UL: recognized

Output KW: 1.5 kW

Voltage: 230

Speed: 3450 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: B

Enclosure: open drip proof

CSA: Y

Electrical type: capacitor start capacitor run

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: square flange

Drive end bearing: BALL

Dimensions:

Frame length: 10.06″

Shaft extension: 0.90″

Overall length: 13.94″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
