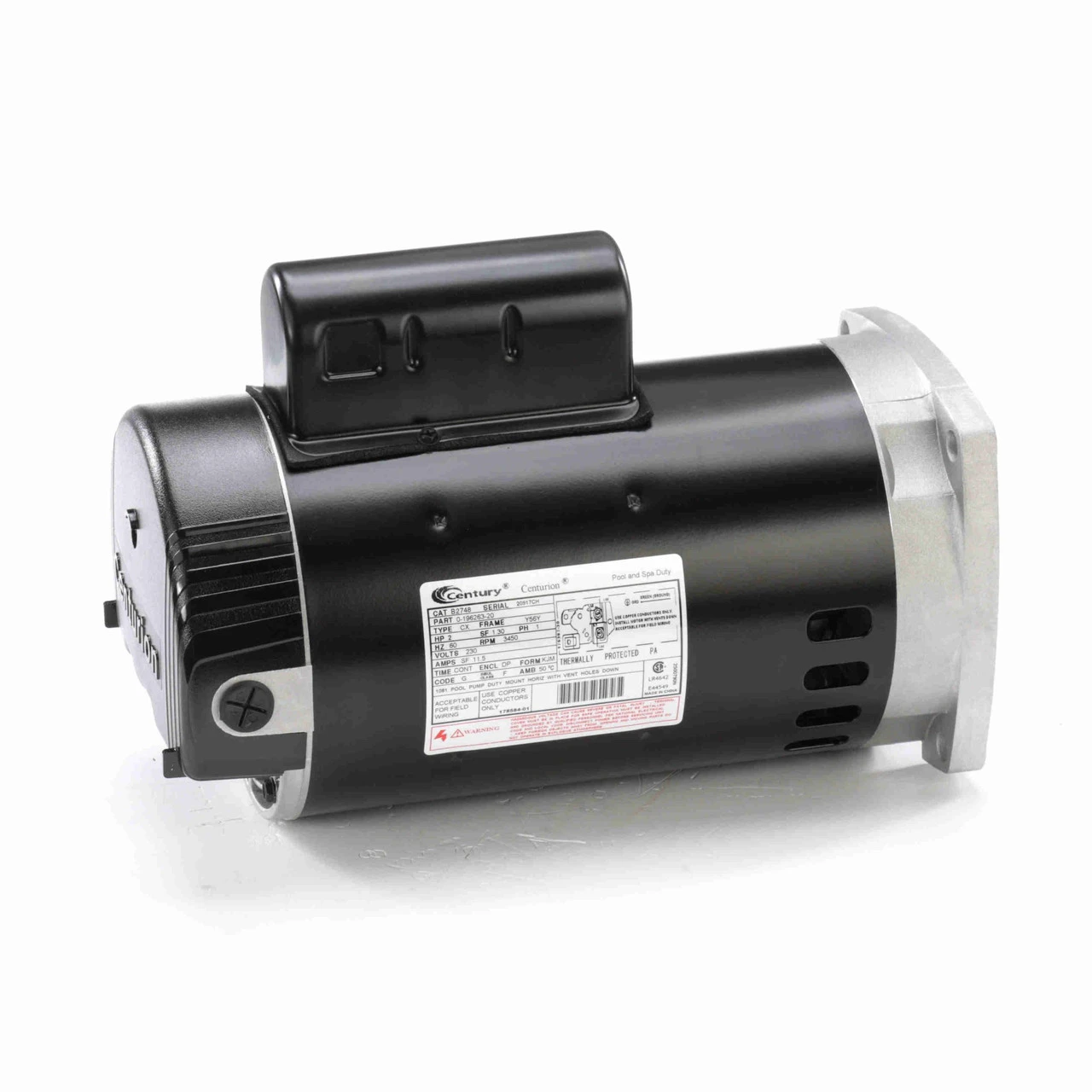

2 HP Threaded Shaft Horizontal Pool Pump Motor, 1.30 SF

This full-rated motor is all that you need to make your life easy! Enjoy your time in the swimming pool by having this enduring motor. Generating an output power of 2 HP, this motor is an asset!

Product Features:

Switchless threaded shaft pool pump motor

Comes with sealed ball bearings and stainless steel shaft

Includes permanent split capacitor

Contains open drip-proof technology

Additional Features:

Output HP: 2.0 Hp

Current: SF 11.5 A

Frequency: 60 Hz

Service Factor: 1.3

Duty: continuous

Frame size: Y56J

Protector: thermally protected

UL: recognized

Output KW: 1.5 kW

Voltage: 230 V

Speed: 3450 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: F

Enclosure: drip proof

CSA: Y

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: round

Drive end bearing: BALL

Dimensions:

Frame length: 9″

Shaft extension: 0.91″

Overall length: 13.4″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
