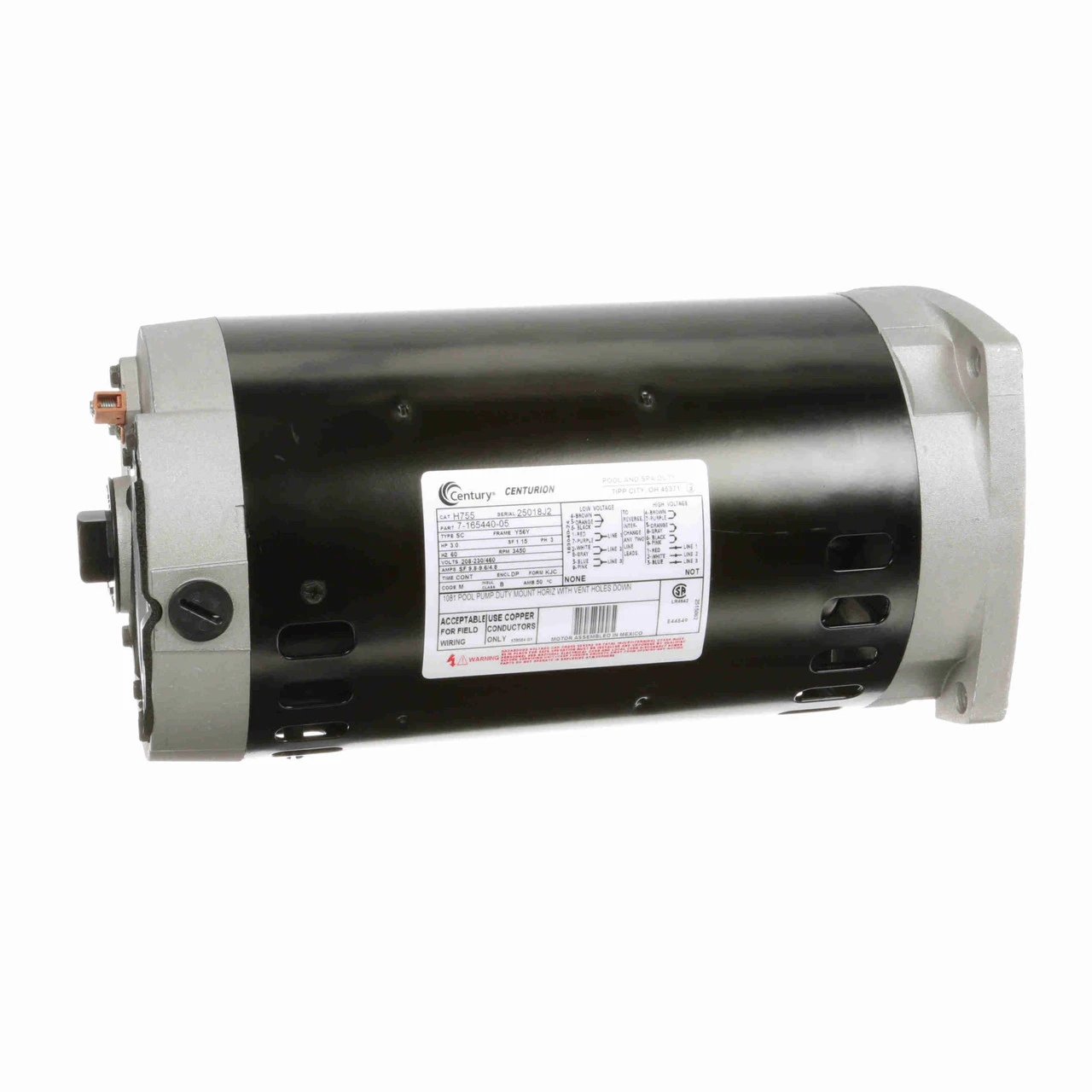

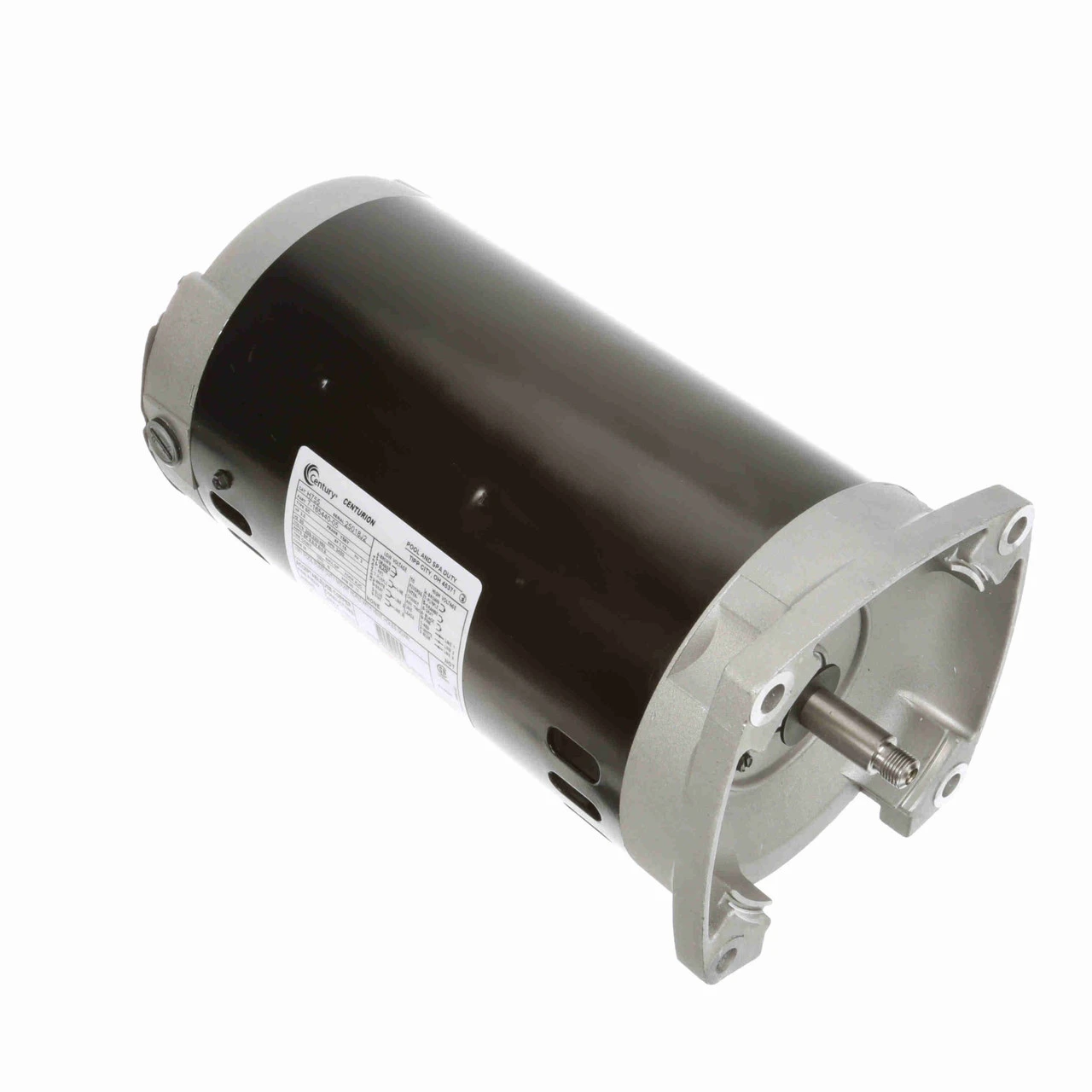

3 HP Square Flange 3-Phase Full-Rated Pool Pump Motor

Get your hands on this high performance and sturdy square motor. Great for household or utility use, such as swimming pools, cellars, garden pond or flooded road. Over the long run, the longevity will save you money.

Product Features:

Includes sealed ball bearings and threaded shaft

Withstand ambient temperature up to 50°C

303 stainless steel shaft for corrosion protection

Additional Features:

Output HP: 3 Hp

Output KW: 2.2 kW

Frequency: 60 Hz

Voltage: 208-230/460 V

Current: SF 9.8-9.6/4.8 A

Speed: 3450 rpm

Service factor: 1.15

Phase: 3

Duty: continuous

Insulation class: B

Frame: Y56Y

Enclosure: drip proof

Thermal protection: none

Electrical type: poly phase, induction type, single or dual voltage

Poles: 2

Rotation: reversible counterclockwise

Mounting: square flange

Motor orientation: horizontal

Drive end bearing: ball

Shaft type: threaded

Dimensions: 11″H x 9.5″W x 20″L

Shaft diameter: 0.625″

Shaft extension: 0.91″

Frame length: 9.5″

Material(s): stainless steel

Frame: rolled steel
