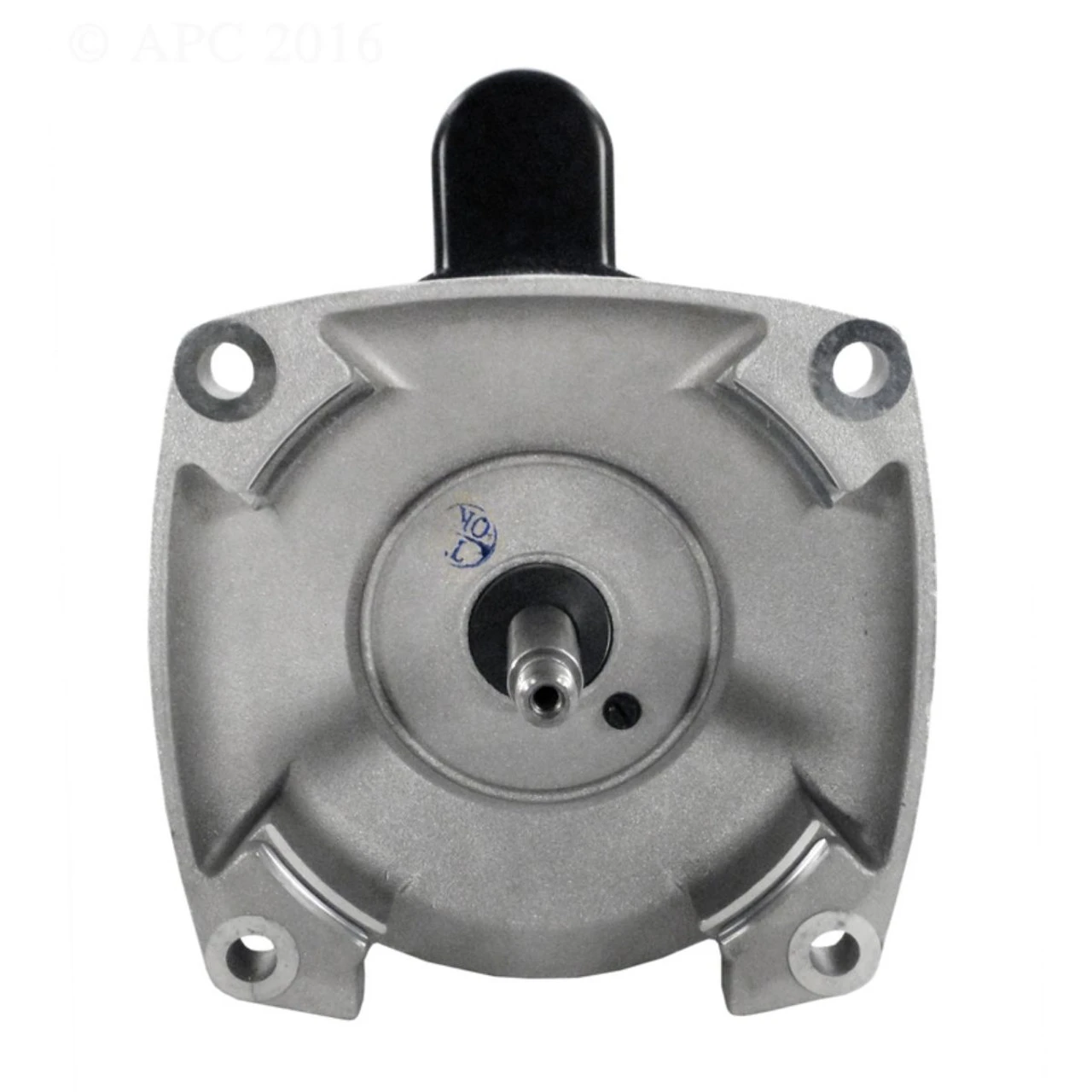

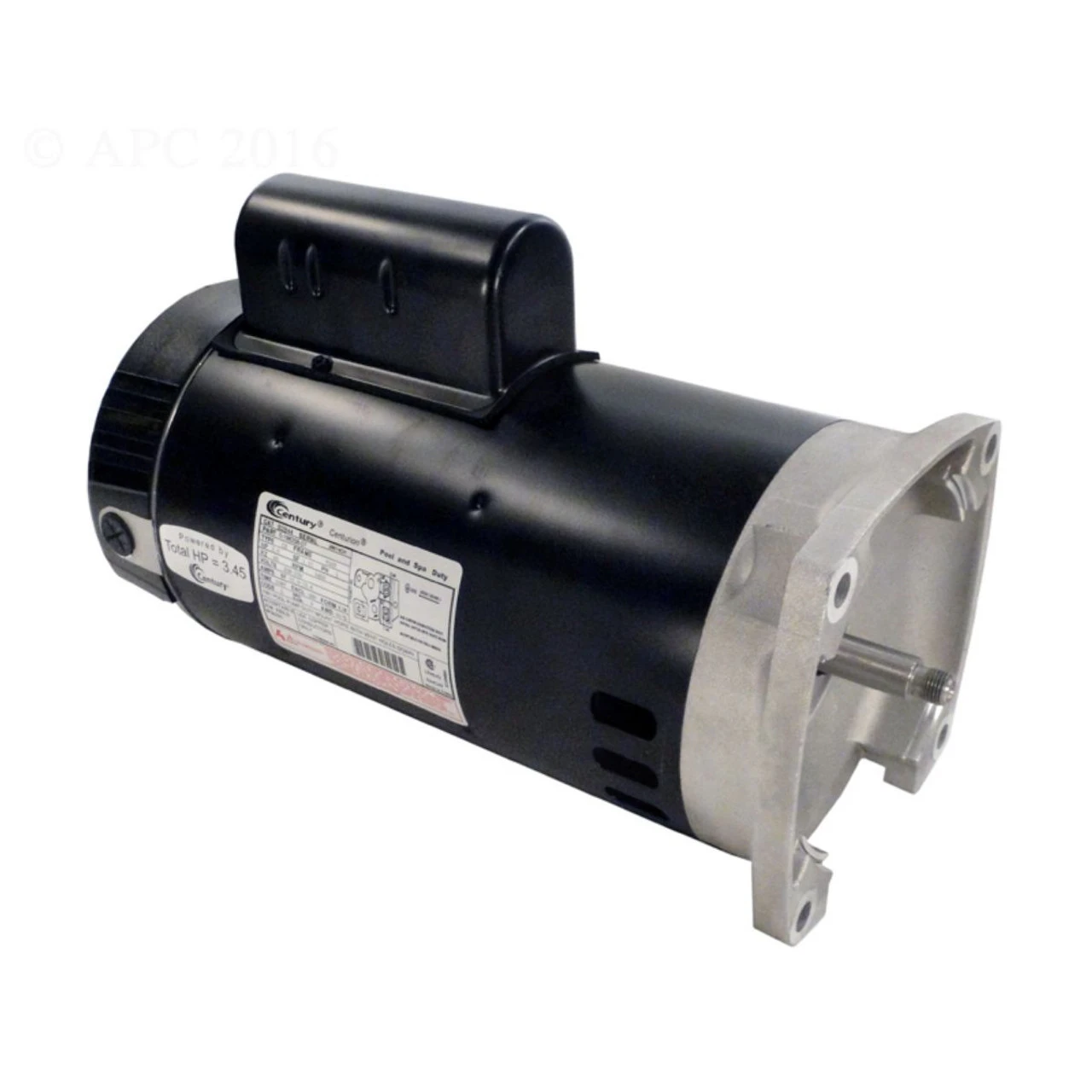

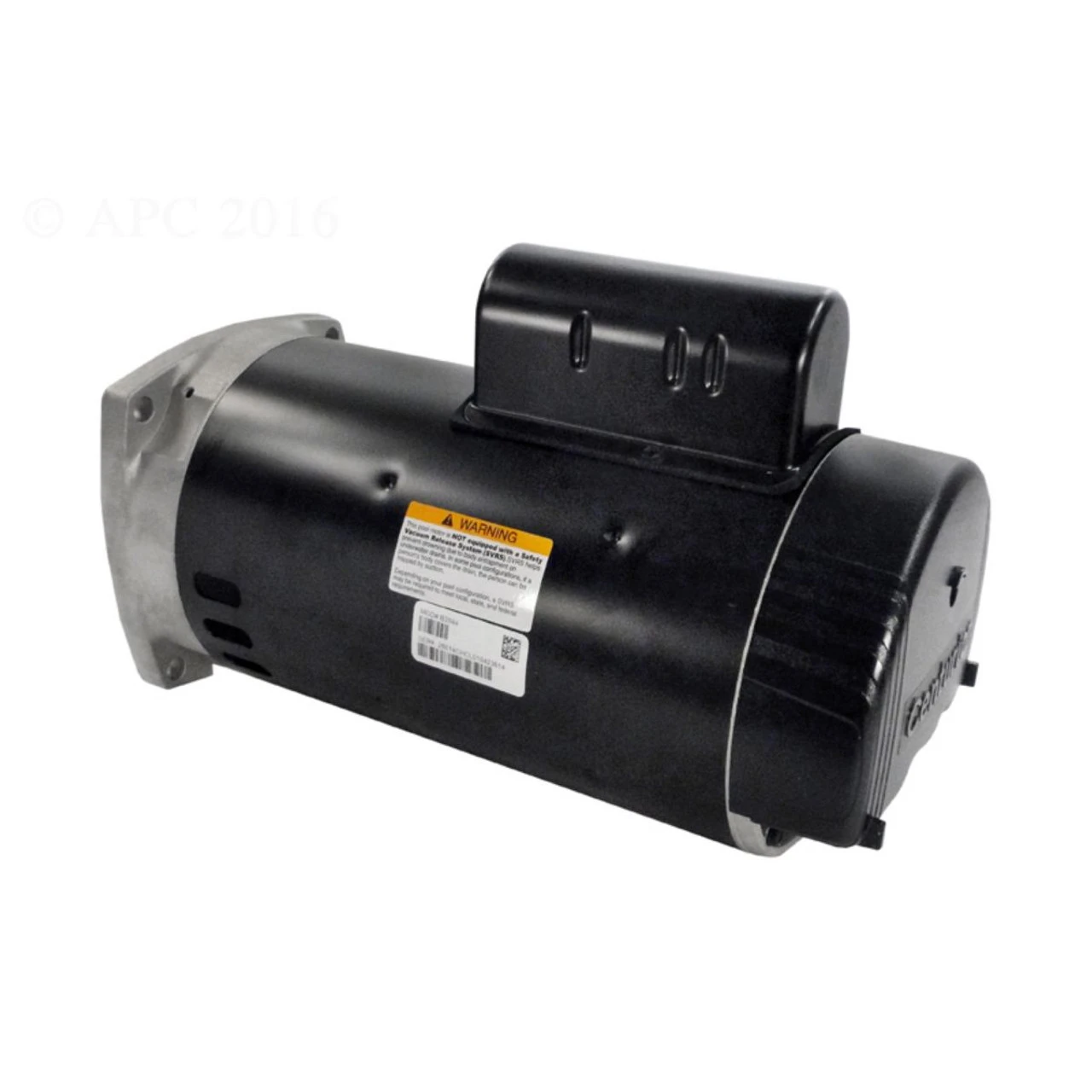

3 HP Square Flange Full Rated Pool Pump Motor, 1.15 SF

Arriving under the specification of 3HP and 230V, this motor is a star among the mechanical devices. No more concern about pumping water as you have the apt device for life-long utilization. Cheap and reliable, as most customers expect!

Product Features:

Energy-efficient switchless pool pump motor

Stainless steel shaft for corrosion protection

Sealed ball bearings

Advanced cooling system for extended motor life

Pump motor has a threaded shaft that allows for convenient and direct mounting

Additional Features:

Output HP: 3

Frequency: 60 Hz

Current: SF 15.0-13.6 A

Service factor: 1.15

Frame: Y56Y

Output KW: 2.2 kW

Voltage: 208-230 V

Speed: 3450 rpm

Phase: 1

Insulation class: F

Enclosure: drip proof

Ambient temperature: 50°C

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: ball

Shaft type: threaded

Mounting: square flange

Drive end bearing: ball

Dimensions:

Shaft diameter: 0.62″

Frame length: 10″

Shaft extension: 0.91″

Material(s): rolled steel/stainless steel
