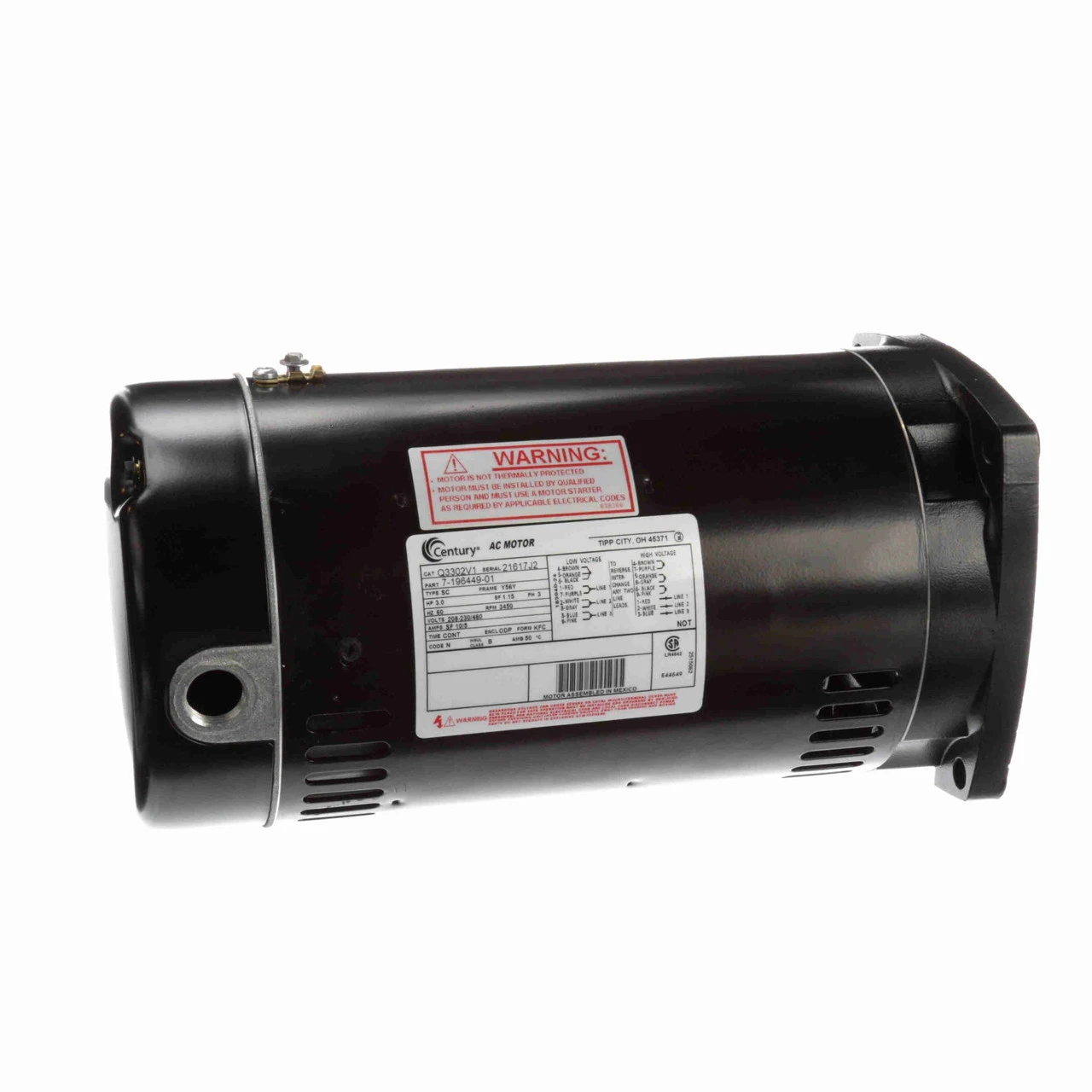

3 HP Square Flange Threaded Shaft 3 Phase Horizontal Pool Pump Motor

This economical motor is something that will ease your work. The 3HP 3PH motor with not much noise will be an ideal accessory. The smoothness of the engine is an added advantage.

Product Features:

Stainless steel shaft for corrosion protection

All copper windings

Sealed ball bearings

Jet Pump

Pump motor has a threaded shaft that allows for convenient and direct mounting

Open drip proof design allows air to circulate through the windings

Additional Features:

Output HP: 3 HP

Frequency: 60 Hz

Current: SF 10/5 A

Service factor: 1.15

Output KW: 2.2 kW

Voltage: 208-230/460 V

Speed: 3450 rpm

Poles: 2

Phase: 3

Insulation class: B

Mounting: square flange

Drive end bearing: ball

Enclosure: open drip proof

Ambient temperature: 50°C

Frame: Y56Y

Thermal protection: none

Motor orientation: horizontal

Electrical type: polyphase, induction type, single or dual voltage

Rotation: counter clockwise pump end

Dimensions:

Shaft diameter: 0.625″

Shaft extension: 0.906″

Frame length: 9.00″

Material(s): stainless steel

Frame material: rolled steel
