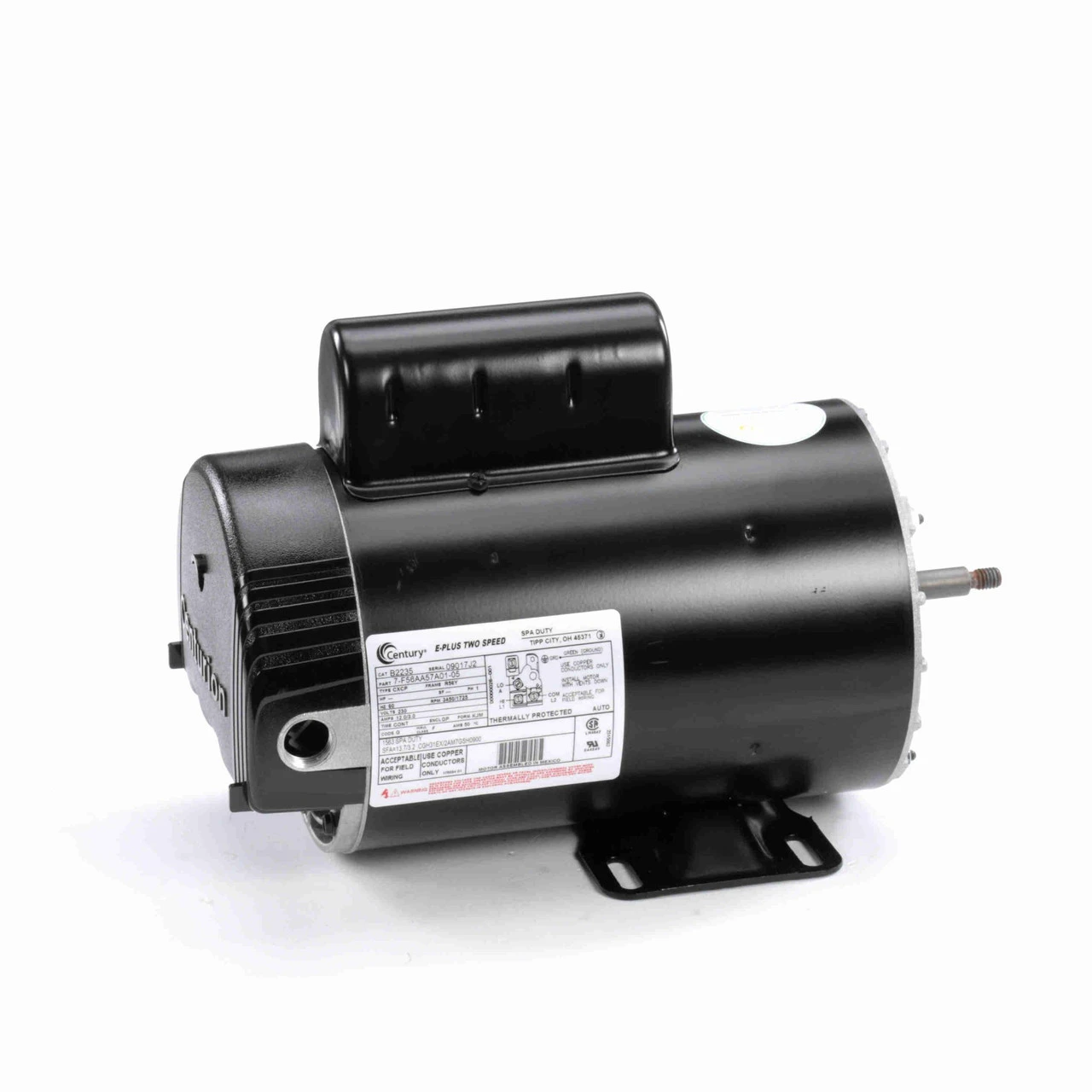

4 HP Thru Bolt Threaded Shaft Horizontal Pool Pump Motor, 1 SF

This motor is of the finest quality and assured to get the most beneficial in terms of stability and performance. No more concern about pumping water as you have the apt device for life-long utilization. Cheap and reliable, as most customers expect!

Product Features:

Two speed rigid base pool pump motor

Comes with four thru bolts on a 5.812 bolt circle

Contains open drip-proof technology

Additional Features:

Output HP: 4, 1/3 Hp

Current: 12.0/3.0 A

Frequency: 60 Hz

Service Factor: 1

Duty: continuous

Frame size: R56Y

Protector: thermally protected

UL: recognized

Output KW: 3.0 kW

Voltage: 230 V

Speed: 3450/1725 rpm

Ambient temperature: 50°C

Phase: 1

Insulation Class: F

Enclosure: drip proof

CSA: Y

Electrical type: psc low speed, cap start/cap run high speed

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2/4

Mounting: thru bolt

Drive end bearing: BALL

Dimensions:

Frame length: 8.75″

Shaft extension: 2.37″

Overall length: 13.49″

Shaft diameter: 0.50″

Material(s): stainless steel

Frame material: rolled steel
