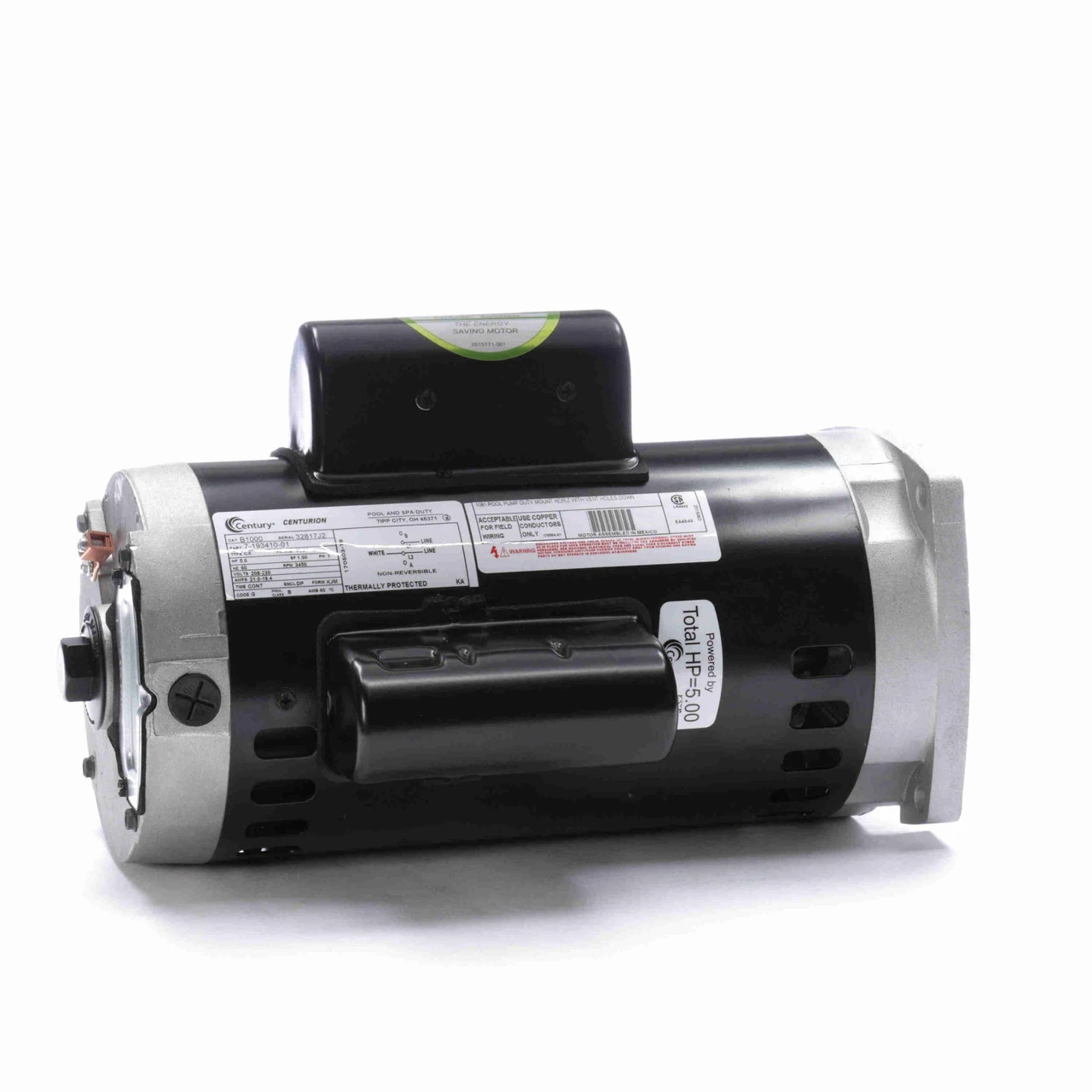

5 HP Square Flange Full Rated Pool Pump Motor, 1 SF

Precise and sturdy, this motor is all that you need to make your day easy! Remember, you should be very careful while choosing mechanical devices. Made with quality materials, this worthy motor will be a life-long asset!

Product Features:

Threaded shaft pool pump motor

Comes with sealed ball bearings

Pentair Pac fab replacement

Contains open drip-proof technology

Additional Features:

Output HP: 5.0 Hp

Current: 21.0-19.4 A

Frequency: 60 Hz

Service Factor: 1

Duty: continuous

Frame size: Y56Y

Protector: thermally protected

UL: recognized

Output KW: 3.7 kW

Voltage: 208-230 V

Speed: 3450 rpm

Ambient temperature: 40°C

Phase: 1

Insulation Class: B

Enclosure: drip proof

CSA: Y

Electrical type: permanent split capacitor, single or dual voltage

Rotation: counterclockwise pump end

Motor orientation: horizontal

Opp drive end bearing: BALL

Shaft type: threaded

Poles: 2

Mounting: square flange

Drive end bearing: BALL

Dimensions:

Frame length: 10.5″

Shaft extension: 0.94″

Overall length: 14.9″

Shaft diameter: 0.62″

Material(s): stainless steel

Frame material: rolled steel
